1. Introduction

The term emergent behavior refers to the collective phenomena observed in macroscopic systems that are distinct from their microscopic constituents. It is brought about by the interaction of the microscopic constituents with one another and with their environment. Whereas the Standard Model of particle physics described in Units 1 and 2 has enjoyed great success by building up systems of particles and interactions from the ground up, nearly all complex and beautiful phenomena observed in the laboratory or in nature defy this type of reductionist explanation. Life is perhaps the ultimate example. In this unit, we explore the physics of emergent phenomena and learn a different approach to problem-solving that helps scientists understand these systems.

ARPES

Figure 1: New experimental probes, such as angle-resolved photoemission spectroscopy (ARPES) enable us to study emergent behavior in quantum matter at an unprecedented level of detail. ARPES is an experimental technique to observe the distribution of the electrons (more precisely, the density of single-particle electronic excitations) in the reciprocal space of solids. Source: © Wikimedia Commons, Public Domain. Author: Saiht, 15 June 2009.
Angle-resolved photoemission spectroscopy (ARPES), also known as ARUPS (angle-resolved ultraviolet photoemission spectroscopy), is a direct experimental technique to observe the distribution of the electrons (more precisely, the density of single-particle electronic excitations) in the reciprocal space of solids. ARPES is one of the most direct methods of studying the electronic structure of the surface of solids. ARPES gives information on the direction, speed and scattering process of valence electrons in the sample being studied (usually a solid). This means that information can be gained on both the energy and momentum of an electron, resulting in detailed information on band dispersion and the Fermi surface. This technique is a refinement of ordinary photoemission spectroscopy. It has proved particularly valuable in helping unravel some of the many puzzling aspects of the behavior of high-temperature superconductors, as we shall see in Section 7. (Unit: 8)

Understanding emergent behavior requires a change of focus. Instead of adopting the traditional reductionist approach that begins by identifying the individual constituents and interactions of a system and then uses them as the basic building blocks for creating a model of a system’s behavior, we must focus on identifying the origins of the emergent collective behavior characteristic of the system. Thus, in creating models of quantum matter, we use the organizing principles and concepts responsible for emergent quantum behavior as our basic building blocks. These new building blocks, the collective organizing principles, represent gateways to emergence.

Certain aspects of emergent behavior are considered “protected,” in the sense that they are insensitive to the details of the underlying microscopic physical processes.

Much of this unit deals with the phenomenon of superconductivity, where electrical current can flow with absolutely no resistance whatsoever. Unraveling the mystery of how electrons (which experience a repulsive electrical interaction) can cooperate and produce coherent collective phenomena is a detective story that is still being written.

To build a little intuition about the subtle interactions that give rise to superconductivity (and the related phenomenon of superfluidity), and to set the stage for what follows, imagine two electrically charged bowling balls placed on a spring mattress. They experience a repulsive electrostatic interaction, but the indentation in the mattress made by one of the bowling balls can influence the other one, producing a net attractive force between them. This is crudely analogous to the direct interactions between electrons and their coupling to the excitations of the crystal lattice of a superconducting metal: an attractive interaction between electrons can result if the interaction between each electron and the excitations of the embedding lattice is strong enough to overcome the electrostatic repulsion and this interaction can give rise to the pairing condensate that characterizes the superconducting state.

Another concept that will arise in this unit is the notion of a “quasiparticle.” The concept of a quasiparticle arises in a simplifying framework that ascribes the combined properties of an electron and its modified surroundings into a “virtual” equivalent composite object that we can treat as if it were a single particle. This allows us to use the theoretical toolkit that was built up for the analysis of single particles.

Quasiparticles

Figure 2: As shown in the figure, dimensionality can influence dramatically the behavior of quasiparticles in metals. Source: © Joseph Sulpizio and David Goldhaber-Gordon, Stanford University.
As shown in the figure, dimensionality can influence dramatically the behavior of quasiparticles in metals. (a) Independent quasiparticle excitations in higher dimensions and (b) a one dimension system forced to behave collectively due to interactions between particles. (Unit: 8)

As we will see below, both the superfluid state of 3He and the superconducting states of metals come about because of quasiparticle pairing processes that transform a collection of fermions (the nuclei in the case of superfluid 3He, and electrons in the case of superconductivity) into a collective, coherent single quantum state, the superfluid condensate. This exhibits the macroscopic quantum mechanical effects of a superfluid flowing with no dissipation, and of the flow of electrical current with literally zero resistance, in a superconductor.

Understanding the subtle interactions that give rise to the pairing of fermions requires looking at the fluids and materials in a different way.

Our change in focus means, in general, that instead of following the motion of single particles in a material, we will focus on the behavior of the material as a whole—for example, the density fluctuations found in bulk matter. A simple example of a density fluctuation is a sound wave traveling through a medium such as air, water, or a solid crystal. Just as light can equally well be described as fluctuations of the electromagnetic field whose quantized particles are called “photons,” the collective density fluctuations in crystalline solids can be described by quantized particles called phonons. Analogously to the particle interactions described in Unit 2, the electronic density fluctuations can couple to phonons and other fields, and the interaction between the density wave and various fields can represent both the influence of particle interactions and the external probes used to measure systems’ behavior. We will also be interested in the spin fluctuations of fermions, which are particles with half-integer spin.

This unit will introduce the frontiers of research in the study of emergent behavior in quantum matter and call attention to the applicability of some key organizing principles to other subfields in physics. Sections 2 through 5 present what we might call “old wine in a new bottle”—an emergent perspective on subject matter described in many existing texts on quantum matter, while the last three sections highlight the frontiers of research in the field.

In the two sections devoted to superconductivity, I have gone to some length to sketch the immediate emergent developments that led up to the historic paper in which Bardeen, Cooper, and Schrieffer described their microscopic theory known as BCS. I have done so, in part, because I can write about these from personal experience. But I also believe that learning how a major problem in physics was finally solved after 45 years of trying might help nonscientists and would-be scientists appreciate the complex process of discovery and provide encouragement for young researchers seeking to solve some of the most challenging problems that our community faces today.

2. Emergent Behavior in Crystalline Solids

Crystalline solids provide familiar examples of emergent behavior. This section will outline the theoretical steps that have revealed the fundamental nature of solids and the ways in which such critical ideas as quantum statistics, excitations, energy bands, and collective modes have enabled theorists to understand how solids exhibit emergent behavior.

Nanowires

Figure 3: Nanowires are crystalline fibers with emergent behaviors expected to be used for nanoscale applications. Source: © Deli Wang Laboratory at UCSD.
As matter comes together, it develops new kinds of structures and forms of collective motion, for which its properties are called “emergent.” For example, these nanowires are crystalline fibers about one thousandth the width of a human hair, and their inherent properties are expected to enable new photodetector architectures for sensing, imaging, memory storage, intrachip optical communications, and other nanoscale applications. (Unit: 8)

At high enough temperatures, any form of quantum electronic matter becomes a plasma—a gas of ions and electrons linked via their mutual electromagnetic interaction. As it cools down, a plasma will first become liquid and then, as the temperature falls further, a crystalline solid. For metals, that solid will contain a stable periodic array of ions along with electrons that are comparatively free to move under the application of external electric and magnetic fields.



INS and Phonon Spectrum

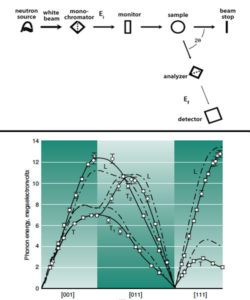

Figure 4: Left: Diagram showing experimental set-up for measurement of the energy loss spectrum of neutrons that are inelastically scattered by a crystal. Right: A typical phonon spectrum obtained through an inelastic neutron scattering (INS) experiment. Source: © Top: Wikimedia Commons, Public Domain. Author: Joachim Wuttke, 22 February 2007. Bottom: Courtesy of Joe Wong, Lawrence Livermore National Laboratory.
In an INS experiment, the neutron beam from a reactor is sent through a monochromator to fix its initial energy before it is scattered by the crystal. By applying energy and momentum conservation laws, one can then determine the spectrum of the phonons responsible for the scattering events. Part of the phonon spectrum for lead determined in this way is shown in the bottom figure; there one sees how INS scattering enables one to obtain the entire spectrum of both longitudinal (L) and transverse (T) phonons, not just the long wavelength linear portion defined by the straight line that is the sound velocity determined from measurements of elastic constants. (Unit: 8)

The crystallization process has broken a basic symmetry of the plasma: there are no preferred directions for the motion of its electrons. Broken symmetry is a key organizing concept in our understanding of quantum matter. The crystalline confinement of the ions to regular positions in the crystal leads to a quantum description of their behavior in terms of the ionic elementary excitations, called “phonons,” which describe their vibrations about these equilibrium positions. Physicists can study phonons in detail through inelastic neutron scattering experiments (Figure 4) that fire neutrons at solid samples and measure the neutrons’ energies after their collisions with the vibrating ions in the solid. Moreover, the solids’ low-energy, long-wavelength behavior is protected: It is independent of details and describable in terms of a small number of parameters—in this case, the longitudinal and transverse sound velocities of their collective excitations, the quantized phonons.

Independent electrons in solids

What of the electrons? The interactions between the closely packed atoms in a periodic array in a crystal cause their outermost electrons to form the energy bands depicted in Figure 5. Here, the behavior of the electrons is characterized by both a momentum and a band index, and their corresponding physical state depends to a first approximation on the valency of the ions and may be characterized by the material’s response to an external electric field. Thus, the solid can take any one of three forms. It may be a metal in which the electrons can move in response to an external electric field; an insulator in which the electrons are localized and no current arises in response to the applied electric field; or a semi-conductor in which the valence band is sufficiently close to a conduction band that a small group of electrons near the top of the band are easily excited by heating the material and can move in response to an applied electric field.



Electronic Band Structure

Figure 5: Comparison of the electronic band structures of metals, semiconductors, and insulators. Source: © Wikimedia Commons, Public Domain. Author: Pieter Kuiper, 6 June 2007.
The energy bands in the crystals shown here have their physical origin in the electronic energy levels of their individual atoms: when the atoms are brought together in the crystal, their interaction broadens each atomic level into energy bands, which may be completely or partially filled. Insulators are materials in which their lowest-lying bands, known as valence bands, are completely filled, while the higher-lying bands are empty, i.e., contain no electrons; as a result the electrons in an insulator cannot physically move in response to an applied electric field. Metals, on the other hand, contain a partially filled band, the conduction band, whose conduction electrons move easily in response to an external electric field. Semiconductors are insulators in which the energy gap between its valence and conduction bands is sufficiently small that at temperatures of interest, a fraction of the electrons in the valence band are thermally excited to the conduction band (leaving behind holes, unoccupied states in the valence band) and both the conduction electrons and the holes can move in response to an applied electric field. Because the density of mobile electrons in a semiconductor is very much smaller than that found for metals, that response is much weaker, hence their name. We note that conduction is an emergent property of materials, since their individual atoms do not conduct, and that the interband transitions between electron energy levels in different bands require a finite amount of energy, while intra-band transitions, where allowed, form a continuum starting at zero energy. (Unit: 8)



Physicists for many years used a simple model to describe conduction electrons in metals: the free electron gas or, taking the periodic field of ions into account through band theory, the independent electron model. The model is based on Wolfgang Pauli’s exclusion principle that we met in Unit 2. Because electrons have an intrinsic spin of 1/2, no two can occupy the same quantum state. In the absence of the periodic field of ions, the quantum states of each electron can be labeled by its momentum, p, and its spin.

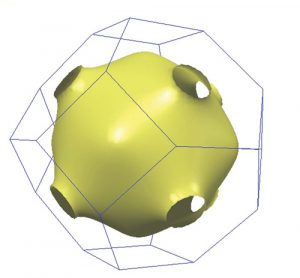

Figure 6: The Fermi surface reveals how the energy varies with momentum for the highest-energy electrons—those that have the Fermi energy. Source: © Los Alamos National Laboratory.

SPECIFIC HEAT

The temperature dependence of the electronic specific heat in simple metals is easily explained; because of Pauli’s principle that no two electrons can occupy the same quantum state, at a temperature T, only a fraction, kT/Ef, of the electrons inside the Fermi surface at which electrons possess the energy, Ef, can be excited. So, with each excited electron having an energy of about kT, the free energy of the system is roughly proportional to T2 and its temperature derivative, the specific heat, varies linearly with T. Similar qualitative arguments explain why the electron spin susceptibility (its response to a uniform external magnetic field) first calculated by Wolfgang Pauli is independent of temperature.

Since the electrons can carry momentum in each of three independent spatial directions, it’s useful to imagine a 3D coordinate system (which we call “momentum space”) that characterizes the x, y, and z components of momentum.

The ground state of the electrons moving in a uniform background of positive charge would then be a simple sphere in momentum space bounded by its Fermi surface, a concept derived from the statistical work of Enrico Fermi and P.A.M. Dirac that defines the energies of electrons in a metal. When the uniform positive charge is replaced by the actual periodic array of the ions in a metallic lattice, the simple sphere becomes a more complex geometric structure that reflects the nature of the underlying ionic periodic structure, an example of which is shown in Figure 6.

To calculate the ground state wavefunction of the electrons, physicists first applied a simple approach called the Hartree-Fock approximation. This neglects the influence of the electrostatic interaction between electrons on the electronic wavefunction, but takes into account the Pauli principle. The energy per electron consists of two terms: the electrons’ average kinetic energy and an attractive exchange energy arising from the Pauli principle which keeps electrons of parallel spin apart.

Emergent concepts for a quantum plasma

David Bohm. © Wikimedia Commons, Public Domain. Author: Karol Langner, 30 July 2005.

CONSCIENCE AND CONTRADICTIONS

David Bohm’s life involved a series of contradictions. Refused security clearance for work on the atom bomb during World War II, he made critical contributions to the development of the bomb. Ever suspicious of quantum mechanics, he wrote a classic textbook on the topic before attempting to develop a theory that explained all of quantum mechanics in terms of hidden variables whose statistical behavior produced the familiar quantum results. Widely regarded as one of the greatest physicists never to win the Nobel Prize, he spent the latter part of his career working primarly on philosophy and brain science.

In the early 1940s, Bohm performed theoretical calculations of collisions of deuterons and protons for his Ph.D. under Robert Oppenheimer at the University of California, Berkeley. But when Oppenheimer recruited him for the Manhattan Project, project head General Leslie Groves refused him security clearance because of his left-wing political associations. So, when his Ph.D. research was classified, he could not even finish his thesis; Oppenheimer had to certify that he had earned his Ph.D. Bohm then spent the years from 1942–45 working at Berkeley’s Radiation laboratory on the classical plasmas found in the gas discharges associated with one of the methods used to separate uranium isotopes and became famous there for his insight into the instabilities leading to plasma turbulence.

Politics reemerged in 1950, when the House Un-American Activities Committee cited Bohm for using the fifth amendment to refuse to answer its questions about his past political affiliations. By the time he was acquitted, the President of his university, Princeton, which had first suspended him, then refused to reappoint or promote him. Unable to obtain another scientific position in the United States because potential employers in both universities and the private sector feared being accused of appointing a communist, he became perhaps the most prominent scientific exile from the United States at a time when his scientific expertise was badly needed in the plasma-based efforts to develop a thermonuclear reactor. His exile first took him to professorships in Sao Paolo, Tel Aviv, and Bristol; he then spent the last 31 years of his life at the University of London’s Birkbeck College and died in a London taxi in 1992.

The Russian physicist Lev Landau famously said, “You cannot repeal Coulomb’s law.” But until 1950, it appeared that the best way to deal with it was to ignore it, because microscopic attempts to include it had led to inconsistencies, or worse yet, divergent results. The breakthrough came with work carried out between 1949 and 1953 by quantum theorist David Bohm and myself, his Ph.D. student. Our research focused on the quantum plasma—electrons moving in a uniform background of positive charge, an idealized state of matter that solid-state physicist Conyers Herring called “jellium.” Bohm and I discovered that when we viewed particle interactions as a coupling between density fluctuations, we could show, within an approximation we called “the random phase approximation (RPA),” that the major consequence of the long range electrostatic interaction between electrons was to produce an emergent collective mode: a plasma oscillation at a frequency, ωp=(4πNE2/m)1/2, where N is the electron density and m its mass, whose quantized modes are known as . Once these had been introduced explicitly, we argued what was left was an effective short-range interaction between electrons that could be treated using perturbation-theoretic methods.  See the math

The plasma oscillation is an example of a “collisionless” collective mode, in which the restoring force is an effective field brought about by particle interaction; in this case, the fluctuations in density produce a fluctuating internal electric field. This is the first of many examples we will consider in which effective fields produced by particle interaction are responsible for emergent behavior. As we shall see later in this unit, the zero sound mode of 3He furnishes another example, as does the existence of phonons in the normal state of liquid 4He. All such modes are distinct from the “emergent,” but familiar, sound modes in ordinary liquids, in which the restoring forces originate in the frequent collisions between particles that make possible a “protected” long wavelength description using the familiar laws of hydrodynamics.

The importance of plasmons

Following their predicted existence, plasmons were identified as the causes of peaks that experimentalists had already seen in the inelastic scattering of fast electrons passing through or reflected from thin solid films. We now know that they are present in nearly all solids. Thus, plasmons have joined electrons, phonons, and magnons">plasmons. Once these had been introduced explicitly, we argued what was left was an effective short-range interaction between electrons that could be treated using perturbation-theoretic methods.  See the math

The plasma oscillation is an example of a “collisionless” collective mode, in which the restoring force is an effective field brought about by particle interaction; in this case, the fluctuations in density produce a fluctuating internal electric field. This is the first of many examples we will consider in which effective fields produced by particle interaction are responsible for emergent behavior. As we shall see later in this unit, the zero sound mode of 3He furnishes another example, as does the existence of phonons in the normal state of liquid 4He. All such modes are distinct from the “emergent,” but familiar, sound modes in ordinary liquids, in which the restoring forces originate in the frequent collisions between particles that make possible a “protected” long wavelength description using the familiar laws of hydrodynamics.

The importance of plasmons

Following their predicted existence, plasmons were identified as the causes of peaks that experimentalists had already seen in the inelastic scattering of fast electrons passing through or reflected from thin solid films. We now know that they are present in nearly all solids. Thus, plasmons have joined electrons, phonons, and magnons (collective waves of magnetization in ferromagnets) in the family of basic elementary excitations in solids. They are as well defined an elementary excitation for an insulator like silicon as for a metal like aluminum.

By the mid 1950s, it was possible to show that the explicit introduction of plasmons in a collective description of electron interactions resolved the difficulties that had arisen in previous efforts to deal in a consistent fashion with electron interaction in metals. After taking the zero point energy of plasmons into account in a calculation of the ground state energy, what remained was a screened electrostatic interaction between electrons of comparatively short range, which could be dealt with using perturbation theory. This work provided a microscopic justification of the independent electron model for metal, in which the effects of electron interaction on “single” electron properties had been neglected to first approximation. It also proved possible to include their influence on the cohesive energy of jellium with results that agreed well with earlier efforts by Eugene Wigner to estimate this quantity, and on the exchange and correlation corrections to the Pauli spin susceptibility, with results that agreed with its subsequent direct measurement by my Illinois colleague, C.P. Slichter.

It subsequently proved possible to establish that both plasma oscillations and screening in both quantum and classical plasmas are not simply mathematical artifacts of using the random phase approximation, but represent protected emergent behavior. Thus, in the limit of long wavelengths, plasma oscillations at ωp are found at any density or temperature in a plasma, while the effective interaction at any temperature or density is always screened, with a screening length given by s/ωp, where s is the isothermal sound velocity. Put another way, electrons in metals are never seen in isolation but always as “quasielectrons,” each consisting of a bare electron and its accompanying screening cloud (a region in space in which there is an absence of other electrons). It is these quasielectrons that interact via a short range screened electrostatic interaction. For many metals, the behavior of these quasielectrons is likewise protected, in this case by the adiabatic continuity that enables them to behave like the Landau Fermi liquids we will consider in the next section.

From plasmons to plasmonics

Figure 8: Harvard School of Engineering and Applied Sciences’ researchers Federico Capasso (red shirt) and Nanfang Yu working on their nanoscale quantum clusters for plasmonic applications.
Source: © Eliza Grinnell.

When plasmons were proposed and subsequently identified, there seemed scant possibility that these would become a subject of practical interest. Unexpectedly, plasmons found at the surface of a metal, or at an interface between two solids, turn out to be sufficiently important in electronic applications at the nanoscale, that there now exists a distinct sub-field that marks an important intersection of physics and nanotechnology called “plasmonics.” Indeed, beginning in 2006, there have been bi-annual Gordon research conferences devoted to the topic. To quote from the description of the founding conference: “Since 2001, there has been an explosive growth of scientific interest in the role of plasmons in optical phenomena, including guided-wave propagation and imaging at the subwavelength scale, nonlinear spectroscopy, and ‘negative index’ metamaterials. The unusual dispersion properties of metals near the plasmon resonance enables excitation of surface modes and resonant modes in nanostructures that access a very large range of wave vectors over a narrow frequency range, and, accordingly, resonant plasmon excitation allows for light localization in ultra-small volumes. This feature constitutes a critical design principle for light localization below the free space wavelength and opens the path to truly nanoscale plasmonic optical devices. This principle, combined with quantitative electromagnetic simulation methods and a broad portfolio of established and emerging nanofabrication methods, creates the conditions for dramatic scientific progress and a new class of subwavelength optical components.” A description of the third such conference began with a description by Federico Capasso (Figure 8) of his bottom-up work on using self-assembled nanoclusters for plasmonic applications.

3. Emergent Behavior in the Helium Liquids

The property that physicists call spin plays an essential role in the nature and emergent behavior of particles, atoms, and other units of matter. As we have noted previously, fermions have an intrinsic half-integer spin; no two fermions can occupy the same quantum state. And as we learned in Unit 6, because bosons have integral spin, any number of bosons can occupy the same quantum state. Those differences play out in the behavior at very low temperatures of the two isotopes of He—the fermion 3He with spin of 1/2 owing to its single unpaired neutron and the boson 4He with no net spin because it has two neutrons whose antiparallel spins sum to zero, as do the spins of the two protons in the He nucleus.

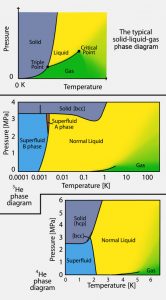

Figure 9: Temperature-pressure phase diagrams of the two quantum materials, 3He and 4He, that remain liquid down to the lowest temperatures in the absence of pressure compared to a typical liquid-solid phase diagram. Source: Recreated from graphics by the Low Temperature Laboratory, Helsinki University of Technology.

The liquid forms of the two isotopes of He are the only two quantum liquids found in nature. Unlike all other atomic materials, because they are exceptionally light they do not freeze upon cooling; their zero point energy prevents them from freezing. As may be seen in Figure 9 (phase transitions) at low temperatures, the two isotopes of He exhibit remarkably different emergent behavior. Below 2.18 Kelvin (K), liquid 4He becomes a superfluid that flows without appreciable resistance. Liquid 3He behaves quite differently, flowing like a normal liquid down to temperatures in the millikelvin regime, some three orders of magnitude cooler, before it exhibits a transition to the superfluid state.

The reason is simple. Atoms of 4He obey Bose-Einstein statistics. Below 2.18 K, a single quantum state, the Bose condensate, becomes macroscopically occupied; its coherent motion is responsible for its superfluid behavior. On the other hand, 3He obeys Fermi-Dirac statistics, which specify that no two particles can occupy the same quantum state. While, as we shall see, its superfluidity also represents condensate motion, the condensate forms only as a result of a weak effective attraction between its quasiparticles—a bare particle plus its associated exchange and correlation cloud—rather than as an elementary consequence of its statistics.

Although physicists understood the properties of 3He much later than those of 4He, we shall begin by considering Landau’s Fermi liquid theory that describes the emergent behavior displayed by the quasiparticles found in the normal state of liquid 3He. We shall put off a consideration of their superfluid behavior until after we have discussed Bose liquid theory and its application to liquid 4He, and explained, with the aid of the BCS theory that we will also meet later in this unit, how a net attractive interaction can bring about superconductivity in electronic matter and superfluidity in 3He and other Fermi liquids, such as neutron matter.

Landau Fermi liquid theory

There are three gateways to the protected emergent behavior in the “Landau Fermi liquids” that include liquid 3He and some simple metals: 1) adiabaticity; 2) effective fields to represent the influence of particle interactions; 3) a focus on long-wavelength, low-frequency, and low-temperature behavior. By incorporating these in his theory, Lev Landau was able to determine the compressibility, spin susceptibility, specific heat, and some transport properties of liquid 3He at low temperatures.

Adiabaticity means that one can imagine turning on the interaction between particles gradually, in such a way that one can establish a one-to-one correspondence between the particle states of the noninteracting system and the quasiparticle states of the actual material. The principal effective fields introduced by Landau were scalar internal long-wavelength effective density fields, which determine the compressibility and spin susceptibility and can give rise to zero sound, and a vector effective field describing backflow that produces an increased quasiparticle mass. The focus on low-energy behavior then enabled him to determine the quasiparticle scattering amplitudes that specify its viscosity, thermal conductivity, and spin diffusion.

Landau, Lev

Figure 10: Landau impacted theoretical physics over much of the 20th century. Source: © AIP Emilio Segrè Visual Archives, Physics Today Collection.
Lev Landau, called “Dau” by his students and colleagues, was a seminal figure in twentieth century physics through his major accomplishments in research during thirty years that earned him a Nobel Prize, the monumental series of texts he wrote with Evgeny Lifshitz, the extraordinary school of theoretical physics he founded, and his weekly seminar in Moscow at which the latest results in physics were regularly presented and analysed. An intense figure, with a commanding presence and a deep interest in all aspects of theoretical physics (seen so clearly in Landau and Lifshitz) he measured everything from attractive women to his fellow theoretical physicists on a logarithmic scale. [Newton and Einstein headed the list, followed, logarithmically, by Bohr, Heisenberg, Dirac, while he ranked himself half a step lower on his logarithmic scale.] He hated writing; so Landau and Lifshitz was written by Lifshitz, while almost every paper he published was written by a collaborator, a student, or a colleague. But every word was read and approved by Landau. In 1962 Landau suffered such a serious brain injury in a minor automobile accident (his skull was cracked open while a carton of eggs on the ledge behind him was not damaged) that he never recovered the ability to function as a scientist. His impact on science continued however throughout the century, as the Landau Institute was a world-leading center of theoretical physics from its founding by his close colleagues in 1968 to the Soviet theoretical physics diaspora of the 1990’s that followed the fall of communism. (Unit: 8)

The restoring force for zero sound, a collective mode found in neutral Fermi liquids, is an internal density fluctuation field that is a generalization of that found in the random phase approximation (RPA). Its phenomenological strength is determined by the spin-symmetric spatial average of the effective interactions between parallel spin and antiparallel spin He atoms; the “Fermi liquid” correction to the Pauli spin susceptibility is determined by the corresponding spin antisymmetric average of the interactions between He atoms, i.e., the difference between the spatially averaged effective interactions between atoms of parallel and antiparallel spin. The vector field representing the strength of the effective current induced by a bare particle is just the backflow field familiar from a study of the motion of a sphere in an incompressible fluid. The collisions between quasiparticles produce an inverse quasiparticle lifetime that varies as the square of the temperature, and when modified by suitable geometric factors, give rise to the viscosity and thermal conductivity found experimentally in the normal state of liquid 3He.

As we noted above, Landau’s theory also works for electrons in comparatively simple metals, for which the adiabatic assumption is applicable. For these materials, Landau’s quasiparticle interaction is the sum of the bare electrostatic interaction and a phenomenological interaction; in other words, it contains an add-on to the screening fields familiar to us from the RPA.

It is in the nonsimple metals capable of exhibiting the localized behavior predicted by Nevill Mott that is brought on by very strong electrostatic repulsion or magnetic coupling between their spins that one sees a breakdown of Landau’s adiabatic assumption. This is accompanied by fluctuating fields and electronic scattering mechanisms that are much stronger than those considered by Landau. For these “non-Landau” Fermi liquids, the inverse quasiparticle lifetime may not vary as T2, and the electron-electron interaction contribution to the resistivity will no longer vary as T2.

We will consider Mott localization and some of the quantum states of matter that contain such non-Landau Fermi liquids in Section 7.

It is straightforward, but no longer exact, to extend Landau’s picture of interacting quasiparticles to short-range behavior, and thereby obtain a physical picture of a quasiparticle in liquid 3He. The theory that achieves this turns out to be equally applicable to 3He and 4He and provides insight into the relative importance of quantum statistics and the strong repulsive interaction between 3He atoms.

© AIP Emilio Segrè Visual Archives, Physics Today Collection.

FRITZ LONDON
Fritz London was a seminal figure in the early days of quantum mechanics through his pioneering work on the chemical bond with Walter Heitler and his work with Edmond Bauer on the measurement problem. He was also the insufficiently celebrated heroic contributor to our understanding of superfluidity and superconductivity. As P. W. Anderson has emphasized, in his brilliant essay on London, “He was among the few pioneers who deliberately chose, once atoms and molecules were understood, not to focus his research on further subdividing the atom into its ultimate constituents, but on exploring how quantum theory could work, and be observed, on the macroscopic scale.” With his younger brother Heinz, he proposed in 1934 the London equations that provided a phenomenological explanation for superconductivity, and a few years later was the first to recognize that the superfluidity of liquid 4He was an intrinsic property of the Bose condensation of its atoms. In his two books on superfluids and superconductors, he set forth the basic physical picture for their remarkable quantum behavior on a macroscopic scale, but died in 1954 before he could see his ideas brought to fruition through microscopic theory. It is a tribute to both London and John Bardeen that with his share of his 1972 Nobel Prize, Bardeen endowed the Fritz London Memorial Lectures at Duke University, where London had spent the last 15 years of his life.

The superfluid Bose liquid

While Heike Kamerlingh Onnes liquefied He in its natural 4He form and then studied its properties in the 1920s, its superfluidity remained elusive until 1938. Jack Allen of Cambridge and Piotr Kapitsa in Moscow almost simultaneously found that, as the flowing liquid was cooled below 2.18 K, its viscosity suddenly dropped to an almost immeasurably low value. German-American physicist Fritz London quickly understood the gateway to the emergence of this remarkable new state of quantum matter. It was Bose condensation, the condensation of the 4He atoms into a single quantum state that began at 2.18 K.

Superfluidity in liquid 4He and other Bose liquids, such as those produced in the atomic condensates, is a simple consequence of statistics. Nothing prevents the particles from occupying the same momentum state. In fact, they prefer to do this, thereby creating a macroscopically occupied single quantum state, the condensate, that can move without friction at low velocities. On the other hand, the elementary excitations of the condensate—phonons and rotons in the case of 4He—can and do scatter against each other and against walls or obstacles, such as paddles, inserted in the liquid. In doing so, they resemble a normal fluid.

This is the microscopic basis for the two-fluid model of 4He developed by MIT’s Laszlo Tisza in 1940. This posits that liquid He consists of a superfluid and a normal fluid, whose ratio changes as the temperature falls through the transition point of 2.18 K. Tisza, who died in 2009 at the age of 101, showed that the model had a striking consequence; it predicted the existence of a temperature wave, which he called second sound, and which Kapitsa’s student, Vasilii Peshkov subsequently found experimentally.

Superfluid Vortex

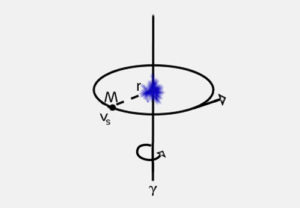

Figure 11: Geometry of a straight vortex line in a superfluid, showing how the superfluid velocity rotates about a normal core (shown in blue) whose size is the superfluid coherence length, ζ.
Geometry of a straight vortex line in a superfluid, showing how the superfluid velocity rotates about a normal core (shown in blue) whose size is the superfluid coherence length, . (Unit: 8)

The superfluid flow of a condensate can also involve rotation. Norwegian-American scientist Lars Onsager and Richard Feynman independently realized that the rotational flow of the condensate of 4He would be characterized by the presence of quantized vortex lines—singularities around which the liquid is rotating, whose motion describes the rotational flow. See The Math below.

W.F. Vinen was subsequently able to detect a single vortex line, while Feynman showed that their production through friction between the superfluid flow and the pipe walls could be responsible for the existence of a critical velocity for superfluid flow in a pipe.

The introduction of rotons

It was Landau who proposed that the long wavelength elementary excitations in superfluid liquid He would be phonons; he initially expected additional phenomena at long length scales connected with vorticity, which he called rotons. He subsequently realized that to explain the experiment, his rotons must be part of the general density fluctuation spectrum, and would be located at a wave vector of the order of the inverse interatomic distance. Feynman then developed a microscopic theory of the phonon-roton spectrum, which was subsequently measured in detail by inelastic neutron scattering experiments. A key component of his work was the development with his student Michael Cohen of a ground state wavefunction that incorporated backflow, the current induced in the background liquid by the moving atom, thereby obtaining a spectrum closer to the experimental findings.

Figure 12: Lars Onsager, a physical chemist and theoretical physicist who possessed extraordinary mathematical talent and physical insight. Source: © AIP Emilio Segrè Visual Archives, Segrè Collection.

By introducing response functions and making use of sum rules and simple physical arguments, it is possible to show that the long-wavelength behavior of a Bose liquid is protected, obtain simple quantitative expressions for the elementary excitation spectrum, and, since the superfluid cannot respond to a slowly rotating external probe, obtain an exact expression for the normal fluid density.

An elementary calculation shows that above about 1 K, the dominant excitations in liquid 4He are rotons. Suggestions about their physical nature have ranged from Feynman’s poetic tribute to Landau—”a roton is the ghost of a vanishing vortex ring”—to the more prosaic arguments by Allen Miller, Nozières, and myself that we can best imagine a roton as a quasiparticle—a He atom plus its polarization and backflow cloud. The interaction between rotons can be described through roton liquid theory, a generalization of Fermi liquid theory. K.S. Bedell, A. Zawadowski, and I subsequently made a strong argument in favor of their quasiparticle-like nature. We described their effective interaction in terms of an effective quasiparticle interaction potential modeled after that used to obtain the phonon-roton spectrum. By doing so, we explained a number of remarkable effects associated with two-roton bound state effects found in Raman scattering experiments.

In conclusion we note that the extension of Landau’s theory to finite wave vectors enables one to explain in detail the similarities and the differences between the excitation spectra of liquid 3He and liquid 4He in terms of modest changes in the pseudopotentials used to obtain the effective fields responsible for the zero sound spectrum found in both liquids. Thus, like zero sound, the phonon-roton spectrum represents a collisionless sound wave and the finding of well-defined phonons in the normal state of liquid 4He in neutron scattering experiments confirms this perspective.

4. Gateways to a Theory of Superconductivity

Superconductivity—the ability of some metals at very low temperatures to carry electrical current without any appreciable resistance and to screen out external magnetic fields—is in many ways the poster child for the emergence of new states of quantum matter in the laboratory at very low temperatures. Gilles Holst, an assistant in the Leiden laboratory of the premier low-temperature physicist of his time, Kamerlingh Onnes, made the initial discovery of superconductivity in 1911. Although he did not share the Nobel Prize for its discovery with Kamerlingh Onnes, he went on to become the first director of the Phillips Laboratories in Eindhoven. But physicists did not understand the extraordinary properties of superconductors until 1957, when Nobel Laureate John Bardeen, his postdoctoral research associate Leon Cooper, and his graduate student Robert Schrieffer published their historic paper (known as “BCS”) describing a microscopic theory of superconductivity.

Figure 13: Superconductors carry electrical current without resistance and are almost perfect diamagnets (a more fundamental aspect of their behavior), in that they can screen out external magnetic fields within a short distance known as the “penetration depth.”

We now recognize the two gateways to the emergence of the superconducting state: an effective attractive interaction between electrons (the quasiparticles of Landau’s Fermi liquid theory), whose energies put them close to their Fermi surface; and the condensation of pairs of these quasiparticles of opposite spin and momentum into a macroscopically occupied single quantum state, the superfluid condensate.

BCS theory explains the superfluidity of quantum fermionic matter. It applies to conventional superconductors in which phonons, the quantized vibrations of the lattice, serve as the pairing glue that makes possible an attractive quasiparticle interaction and those discovered subsequently, such as superfluid pairing phenomena in atomic nuclei, superfluid 3He, the cosmic superfluids of nuclear matter in the solid outer crust, and liquid interiors of rotating neutron stars. It also applies to the unconventional superconductors such as the cuprate, heavy electron, organic, and iron-based materials that take center stage for current work on superconductivity.

As we shall see, a remarkable feature of BCS theory is that, although it was based on an idealized model for quasiparticle behavior, it could explain all existing experiments and predict the results of many new ones. This occurs because the superconducting state is protected; its emergent behavior is independent of the details. As a result, a quite simple model that incorporates the “right stuff”—the gateways to superconducting behavior we noted above—can lead to a remarkably accurate description of its emergent behavior. In this section, we will trace the steps from 1950 to 1956 that led to the theory. The next section will outline the theory itself. And later in this unit, we will show how a simple extension of the BCS framework from the Standard Model considered in their original paper offers the prospect of explaining the properties of the unconventional superconductors at the center of current research on correlated electron matter.

Four decades of failed theories

In 1950, nearly 40 years after its discovery, the prospects for developing a microscopic theory of superconductivity still looked grim. Failed attempts to solve this outstanding physics challenge by the giants in the field, from Einstein, Bohr, Heisenberg, Bloch, and Landau to the young John Bardeen, led most theorists to look elsewhere for promising problems on which to work.

Meissner Effect

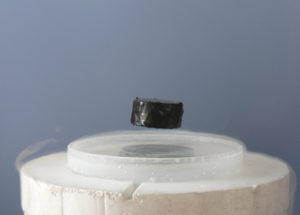

Figure 14: A photograph such as this of a levitating magnet is arguably the iconic image for superconductivity. It provides a vivid demonstration the way in which the near perfect diamagnetism of a superconducting material (the Meissner effect) makes it possible to levitate magnets above it. Source: © Wikimedia Commons, GNU Free Documentation License, Version 1.2. Author: Mai-Linh Doan, 13 October 2007.
The levitation is produced by the diamagnetic currents induced in the superconductor by the magnetic field produced by the magnet. Prior to 1986, demonstrations of this effect required liquid helium to cool the superconducting material below its superconducting transition temperature, TC. With the advent of the cuprate superconductors, such as YBCO, whose TC exceeds 90 K, a demonstration now requires only a YBCO sample and liquid nitrogen, both of which are inexpensive and readily available. Magnetically levitated trains that float above a track are now feasible, and a google search will turn up excellent educational films about these. (Unit: 8)

Despite that, experimentalists had made considerable progress on the properties of the superconducting state. They realized that a strong enough applied external magnetic field could destroy superconductivity and that a superconductor’s almost perfect diamagnetism—its ability to shield out an external magnetic field within a short distance, known as the “penetration depth”—was key to an explanation. Theorists found that a two-fluid model analogous to that considered for superfluid 4He in the previous section could connect many experimental results. Moreover, London had argued eloquently that the perfect diamagnetism could be explained by the rigidity of the superfluid wavefunction in the presence of an external magnetic field, while progress occurred on the “phase transition” front as Vitaly Ginzburg and Landau showed how to extend Landau’s general theory of second-order phase transitions to superconductors to achieve an improved phenomenological understanding of emergent superconducting behavior.

Superconductivity was obviously an amazing emergent electronic phenomenon, in which the transition to the superconducting state must involve a fundamental change in the ground and excited states of electron matter. But efforts to understand how an electron interaction could bring this about had come to a standstill. A key reason was that the otherwise successful nearly free electron model offered no clues to how an electron interaction that seemed barely able to affect normal state properties could turn some metals into superconductors.

A promising new path

THE DOUBLE LAUREATE AND HIS COLLEAGUES

Photo of John Bardeen. © Department of Physics, University of Illinois at Urbana-Champaign, courtesy AIP Emilio Segrè Visual Archives.

In 1951, after professional differences had undermined the relationship of John Bardeen and Walter Brattain with William Shockley, their team leader in the invention of the transistor at Bell Telephone Laboratories, Bardeen took a new job, as professor of electrical engineering and of physics in the University of Illinois at Urbana-Champaign. There, he was able to pursue freely his interest in superconductivity, setting out various lines of research to take on the immense challenge of understanding its nature. By 1957, when Bardeen, his postdoctoral research associate Leon Cooper, and his graduate assistant Robert Schrieffer developed what came to be known as the BCS theory, Bardeen had received the 1956 Nobel Prize in Physics for discovering the transistor. Bardeen knew that BCS was also worthy of the prize. But since no one had received a second Nobel Prize in the same subject, he reportedly worried that because of his earlier Nobel Prize, and his role in BCS, his two colleagues would not be eligible. Fortunately, the Nobel Committee eventually saw no reason to deny the prize to BCS: It awarded the three men the 1972 physics prize, in the process making Bardeen the first individual to become a double laureate in the same field.

Matters began to change in 1950 with the discovery of the isotope effect on the superconducting transition temperature, Tc, by Bernard Serin at Rutgers University, Emanuel Maxwell at the National Bureau of Standards, and their colleagues. They found that Tc for lead varied inversely as the square root of its isotopic mass. That indicated that quantized lattice vibrations must be playing a role in bringing about that transition, for their average energy was the only physical quantity displaying such a variation.

That discovery gave theorists a new route to follow. Herbert Fröhlich and Bardeen independently proposed theories in which superconductivity would arise through a change in the self-energy of individual electrons produced by the co-moving cloud of phonons that modify their mass. But, it soon became clear that efforts along these lines would not yield a satisfactory theory.

Frohlich then suggested in 1952 that perhaps the phonons played a role through their influence on the effective electron interaction. The problem with his proposal was that it was difficult to see how such an apparently weak phonon-induced interaction could play a more important role than the much stronger repulsive electrostatic interaction he had neglected. Two years later, Bardeen and his first postdoctoral research associate at the University of Illinois at Urbana-Champaign—myself—resolved that problem.

We did so by generalizing the collective coordinate formalism that David Bohm and I had developed for electron-electron interactions alone to derive their effective interaction between electrons when both the effects of the electrostatic interaction and the electron-phonon coupling are taken into account (Figure 15). Surprisingly, we found that, within the random phase approximation, the phonon-induced interaction could turn the net interaction between electrons lying within a characteristic phonon frequency of the Fermi surface from a screened repulsive interaction to an attractive one. We can imagine the phonon-induced interaction as the electronic equivalent of two children playing on a waterbed. One (the polarizer) makes a dent (a density wave) in the bed; this attracts the second child (the analyzer), so that the two wind up closer together.

Effective Interaction

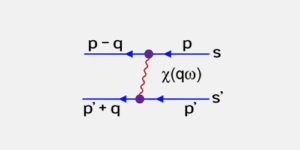

Figure 15: The net effective interaction between electrons in a metal, with (a) depicting the net phonon-induced interaction and (b) their intrinsic effective screened electrostatic interaction.
Source: © David Pines.
The background of polarizable conduction electrons and phonons present in a metal modifies the interaction between electrons in two ways. On the left we sketch the way in which the interaction between electrons of momentum p and p + q is modified by their coupling to phonons, the quantized lattice vibrations, as one electron emits a phonon of momentum q, and the second electron absorbs it, leading to an attractive interaction. On the right we sketch the way in which the repulsive electrostatic interaction between the electrons is modified by electronic polarization processes in the metal, with one electron acting to induce a density fluctuation of momentum q, and the second electron absorbing it. Bardeen and the author developed a self-consistent treatment of both (a) and (b), in which both the electron-electron and electron-phonon interactions were screened, and the phonon energies were modified by their coupling to electrons. We found that within the RPA, at very low frequencies, the attractive phonon-induced interaction could win out over the repulsive screened interaction; subsequent work by the author showed that when one took into account the influence of the periodic ionic potential on both processes, this provides a good criterion for finding superconductivity in the periodic system, explaining why monovalent metals do not superconduct, etc. (Unit: 8)

Leon Cooper, who replaced me in Bardeen’s research group in 1955, then studied the behavior of two electrons of opposite spin and momentum near the Fermi surface using a simplified version of the Bardeen-Pines attractive interaction. In a 1956 calculation that allowed for the multiple scattering of the pair above the Fermi surface, he showed that net attraction produced an energy gap in the form of a bound state for the electron pair.

During this period, in work completed just before he went to Stockholm to accept his 1956 Nobel Prize, Bardeen had showed that many of the key experiments on superconductivity could be explained if the “normal” elementary excitations of the two-fluid model were separated from the ground state by an energy gap. So the gap that Cooper found was intriguing. But there was no obvious way to go from a single bound pair to London’s coherent ground state wavefunction that would be rigid against magnetic fields. The field awaited a breakthrough.

5. The Bardeen, Cooper, and Schrieffer (BCS) Theory

The breakthrough came in January 1957, when Bardeen’s graduate student, Robert Schrieffer, while riding a New York City subway train following a conference in Hoboken, NJ on The Many-Body Problem, wrote down a candidate wavefunction for the ground state and began to calculate its low-lying excited states. He based his wavefunction on the idea that the superconducting condensate consists of pairs of quasiparticles of opposite spin and momenta. This gateway to emergent superconducting behavior is a quite remarkable coherent state of matter; because the pairs in the condensate are not physically located close to one another, their condensation is not the Bose condensation of pairs that preform above the superconducting transition temperature in the normal state. Instead, the pairs condense only below the superconducting transition temperature. The typical distance between them, called the “coherence length,” is some hundreds of times larger than the typical spacing between particles.

To visualize this condensate and its motion, imagine a dance floor in which one part is filled with couples (the pairs of opposite spin and momentum) who, before the music starts (that is, in the absence of an external electric field), are physically far apart (Figure 16). Instead of being distributed at random, each member of the couple is connected, as if by an invisible string, to his or her partner faraway. When the music begins (an electric field is applied), each couple responds by gliding effortlessly across the dance floor, moving coherently with the same velocity and never colliding with one another: the superfluid motion without resistance.

Superfluid Motion without Resistance

Figure 16: Like the condensate, these coupled dancers came together when the music started and continued in a fluid motion next to each other without bumping into each other or stepping on each other’s toes.
Source: © Bruce Douglas.
In analogy to the BCS superconducting condensate, these coupled dancers came together when the music started and continued in a fluid motion next to each other without bumping into each other or stepping on each others toes; however for the “multiple dancers” analogy to apply to the actual BCS condensate, the partners in a given couple would be executing their flawless movements while very far apart, separated by the members of many other couples, a coordinated dance more easily imagined than implemented. (Unit: 8)



Sorting out the details of the theory

Back in Urbana, Schrieffer, Bardeen, and Cooper quickly worked out the details of the microscopic theory that became known as BCS. A key feature was the character of the elementary excitations that comprise the normal fluid. We can describe these as quasiparticles. But in creating them, we have to break the pair bonds in the condensate. This requires a finite amount of energy—the energy gap. Moreover, each BCS quasiparticle carries with it a memory of its origin in the pair condensate; it is a mixture of a Landau quasiparticle and a Landau quasihole (an absence of a quasiparticle) of opposite spin.


INSPIRATION FOR THE CRITICAL BREAKTHROUGH

Schrieffer found the inspiration for his wavefunction in earlier work done by T. D. Lee, Francis Low, and myself on a quite different problem: that of understanding the behavior of a polaron—an electron moving in a polar crystal that is strongly coupled to its lattice vibrations. When I arrived in Urbana in 1952, John Bardeen suggested that insight into the next step on a microscopic, phonon-based theory of superconductivity might come from a solution of the polaron problem that went beyond perturbation theory. Lee and I found such a solution by adapting an approach developed by Sin-Itro Tomonaga for mesons coupled to nuclei. With the help of our Urbana colleague Francis Low, we then wrote the wavefunction for the solution in an especially simple way. The LLP wavefunction describes a coherent state in which the phonons in the cloud of strongly coupled phonons around the electron are emitted successively into the same momentum state; it took the form:

ΨLLP ~ Πexp [Σk [f(k) [ak * +a-k0

where ψ0 was the ground state wavefunction, the operators ak* and ak act to create or destroy phonons, and f(k) describes the phonon state. Schrieffer’s brilliant insight was to try a ground state wavefunction for the superconductor in which the LLP phonon field was replaced by the pair field of the  condensate, b*=Ck↑ *C-k↓ *, where the c* are creation operators for a single electron (quasiparticle); his wavefunction thus took the form:

Ψ ~ Πexp [Σkbk *f(k) ]ψ0

which reduces to the BCS wavefunction,

Ψbcs ~ Π[1 + Σkbk *f(k) ]ψ0

Figure 17: An illustration of the physical process by which a BCS quasiparticle becomes a mixture of a normal state quasiparticle and a quasihole and in so doing acquires an energy gap. Source: © David Pines.

Figure 17 illustrates the concept. Because the key terms in the effective interaction of the BCS quasiparticle with its neighbors are those that couple it to the condensate, a quasiparticle that scatters against the condensate emerges as a quasihole of opposite spin. The admixture of Landau quasiholes with quasiparticles in a BCS quasiparticle gives rise to interference effects that lead the superconductor to respond differently to probes that measure its density response and probes that measure its spin response. Indeed, the fact that BCS could explain the major difference between the results of acoustic attenuation measurements that probe the density and nuclear spin relaxation measurements of the spin response of the superconducting state in this way provided definitive proof of the correctness of the theory.

The basic algebra that leads to the BCS results is easily worked out. It shows that the energy spectrum of the quasiparticles in the superconducting state takes an especially simple form:

Ep = [ε2p+ Δ2]1/2

Here, Ep is the normal state quasiparticle energy and Δ the temperature-dependent superconducting energy gap, which also serves as the order parameter that characterizes the presence of a superconducting condensate. When it vanishes at Tc, the quasiparticle and the metal revert to their normal state behavior.

The impact of BCS theory

The rapid acceptance by the experimental low-temperature community of the correctness of the BCS theory is perhaps best epitomized by a remark by David Shoenberg at the opening of a 1959 international conference on superconductivity in Cambridge: “Let us now see to what extent the experiments fit the theoretical facts.” Acceptance by the theoretical community came less rapidly. Some of those who had failed to devise a theory were particularly reluctant to recognize that BCS had solved the problem. (Their number did not include Feynman, who famously recognized at once that BCS had solved the problem to which he had just devoted two years of sustained effort, and reacted by throwing into the nearest wastebasket the journal containing their epochal result.) The objections of the BCS deniers initially centered on the somewhat arcane issue of gauge invariance. With the rapid resolution of that issue, the objections became more diffuse. Some critics persisted until they died, a situation not unlike the reaction of the physics community to Planck’s discovery of the quantum.

For most physicists, however, the impact of BCS was rapid and immense. It led to the 1957 proposal of nuclear superfluidity, a 15-year search for superfluid 3He, and to the exploration of the role played by pair condensation in particle physics, including the concept of the Higgs boson as a collective mode of a quark-gluon condensate by Philip W. Anderson and Peter Higgs. It led as well to the suggestion of cosmic hadron superfluidity, subsequently observed in the behavior of pulsars following a sudden jump in their rotational frequency, as we will discuss in Section 8.

In addition, BCS gave rise to the discovery of emergent behavior associated with condensate motion. That began with the proposal by a young Cambridge graduate student, Brian Josephson, of the existence of currents associated with the quantum mechanical tunneling of the condensate wavefunction through thin films, called “tunnel junctions,” that separate two superconductors. In retrospect, Josephson’s 1962 idea was a natural one to explore. If particles could tunnel through a thin insulating barrier separating two normal metals, why couldn’t the condensate do the same thing when one had a tunnel junction made up of two superconductors separated by a thin insulating barrier? The answer soon came that it could, and such superconducting-insulating-superconductor junctions are now known as “Josephson junctions.” The jump from a fundamental discovery to application also came rapidly. Superconducting quantum interference devices (SQUID) (Figure 18), now use such tunneling to detect minute electromagnetic fields, including an application in magnetoencephalography—using SQUIDS to detect the minute magnetic fields produced by neurocurrents in the human brain.

Superconducting SQUID

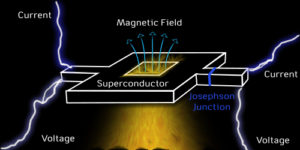

Figure 18: A Superconducting Quantum Interference Device (SQUID) is the most sensitive type of detector of magnetic fields known to science.
A Superconducting Quantum Interference Device (SQUID) is a remarkably sensitive detector of minute magnetic fields. It consists of a superconducting loop with two “Josephson Junctions” (only one of which is labeled in the figure). The extreme sensitivity of SQUIDs as magnetometers makes them ideal for studies in medicine, such as magnetoencephalography, the measurement of neural activity inside human and animal brains, as well as being available commercially for the measurement of magnetic properties of materials. (Unit: 8)

Still another fascinating property of a superconductor was discovered by a young Soviet theorist, Alexander Andreev, who realized that when an electron is reflected from the surface of a superconductor, because its wavefunction samples the condensate, it can break one of the pairs in the superconducting condensate, and so emerge as a hole. Measurements by point contact spectroscopy show this dramatic effect, known now as “Andreev reflection,” which is the condensed matter equivalent of changing a particle into an antiparticle through a simple physical process.

Looking back at the steps that led to BCS as the Standard Model for what we now describe as conventional superconductors, a pattern emerges. Bardeen, who was key to the development of the theory at every stage from 1950 to 1957, consistently followed what we would now describe as the appropriate emergent strategy for dealing with any major unsolved problem in science:

  • Focus first on the experimental results via reading and personal contact.
  • Explore alternative physical pictures and mathematical descriptions without becoming wedded to any particular one.
  • Thermodynamic and other macroscopic arguments have precedence over microscopic calculations.
  • Aim for physical understanding, not mathematical elegance, and use the simplest possible mathematical description of system behavior.
  • Keep up with new developments in theoretical techniques—for one of these may prove useful.
  • Decide at a qualitative level on candidate organizing concepts that might be responsible for the most important aspect of the measured emergent behavior.
  • Only then put on a “reductionist” hat, proposing and solving models that embody the candidate organizing principles.

6. New Types of Superconductors

The past three decades have seen an outpouring of serendipitous discoveries of new quantum phases of matter. The most spectacular was the 1986 discovery by IBM scientists J. Georg Bednorz and K. Alex Müller of superconductivity at high temperatures in an obscure corner of the periodic table: a family of ceramic materials of which LaxSr1-xCuO4 (containing the elements lanthanum, strontium, copper, and oxygen) was a first example. By the American Physical Society meeting in March 1987 (often referred to as the “Woodstock of physics”), it was becoming clear that this was just the first of a large new family of cuprate superconductors that possess two factors in common. They have planes of cupric oxide (CuO2) that can be doped with mobile electrons or holes. And the quasiparticles in the planes exhibit truly unusual behavior in their normal states while their superconducting behavior differs dramatically from that of the conventional superconductors in which phonons supply the pairing glue.

Over the past two decades, thanks to over 100,000 papers devoted to their study, we have begun to understand why the cuprate superconductors are so different. Moreover, it is now clear that they represent but one of an extended family of unconventional superconductors with three siblings: the heavy electron superconductors discovered in 1979; the organic superconducting materials discovered in 1981; and the iron-based superconductors discovered in 2006. Although there is a considerable range in their maximum values of Tc—about 160 K for a member of the cuprate family, HgBa2Ca2Cu3Ox, under pressure; roughly 56 K in the iron pnictides (LnFeAsO1-x); and 18.5 K for PuGaIn5, a member of the 115 (RMIn5) family of heavy electron materials—they show remarkable similarities in both their transport and magnetic properties in the normal and superconducting states.

In particular, for all four siblings:

  • Superconductivity usually occurs on the border of antiferromagnetic order at which the magnetic moments of atoms align.
  • The behavior of the quasiparticles, density fluctuations, and spin fluctuations in their normal state is anomalous, in that it is quite different from that of the Landau Fermi liquids found in the normal state of liquid 3He and conventional superconductors.
  • The preferred superconducting pairing state is a singlet state formed by the condensation of pairs of quasiparticles of opposite spin in an orbital angular momentum, l, state, with l = 2; as a result, the superconducting order parameter and energy gap vary in configuration and momentum space.
Two Types of Superconductors

Figure 20: Left: Conventional superconductors and right: heavy-electron superconductors. Source: © Los Alamos National Laboratory.
Left: In conventional superconductivity, the vibration of the metal’s structural lattice provides a symmetrical attraction (fuzzy blue region) between two electrons. In this artist’s conception, a passing electron causes the positively charged ions (gray) to pull together, which attracts a second electron that has its magnetic pole pointing in the opposite direction.
Right: In heavy-electron superconductors, electron pairing is caused by a purely electronic mechanism, their near approach to antiferromagnetic behavior. The localized electron spins shown here are close to being antiferromagnetic, being almost aligned in a configuration in which their spins alternate in direction from one lattice site to the next. A passing conduction electron induces a spin fluctuation that leads to spatially varying mix of both repulsive and attractive (the blue and yellow shading) forces on a second conduction electron that has its spin pointing in a direction opposite to that of the first. This pattern of alternating repulsion (at the origin) and attraction (at, for example, the four nearest neighbor sites) gives rise to a superconducting order parameter that has nodes (zeroes) where the repulsion is strongest and is maximum where the attraction is strongest. (Unit: 8)

In this section, we can explore only a small corner of this marvelous variety of materials whose unexpected emergent properties continue to surprise and offer considerable promise for commercial application. To understand these, we must go beyond the standard model in which phonons provide the glue that leads to attraction. We explore the very real possibility that the net effective attraction between quasiparticles responsible for their superconductivity occurs without phonons and is of purely magnetic origin. In so doing, we enter territory that is still being explored, and in which consensus does not always exist on the gateways to the emergent behavior we find there.

Heavy electron materials

We begin with the heavy electron materials for three reasons. First, and importantly, they can easily be made in remarkably pure form, so that in assessing an experiment on them, one is not bedeviled by “dirt” that can make it difficult to obtain reliable results from sample to sample. Second, the candidate organizing concepts introduced to explain their behavior provide valuable insight into the unexpected emergent behavior seen in the cuprates and other families of unconventional superconductors. Third, these materials display fascinating behavior in their own right.

Heavy electron materials contain a lattice, called the “Kondo lattice,” of localized outer f-electrons of cerium or uranium atoms that act like local magnetic moments magnetically coupled through their spins to a background sea of conduction electrons. It is called a Kondo lattice because in isolation each individual magnetic moment would give rise to a dramatic effect, first identified by Jun Kondo, in which the magnetic coupling of the conduction electrons to the moment acts to screen out the magnetic field produced by it, while changing the character of their resistivity, specific heat, and spin susceptibility. When one has a lattice of such magnetic moments, the results are even more dramatic; at low temperatures, their coupling to the conduction electrons produces an exotic new form of quantum matter in which some of the background conduction electrons form a heavy electron Fermi liquid for which specific heat measurements show that the average effective mass can be as large as that of a muon, some 200 or more bare electron masses. The gateway to the emergence of this new state of matter, the heavy electron non-Landau Fermi liquid, is the collective entanglement (hybridization) of the local moments with the conduction electrons.

Remarkably, the growth of the heavy electron Fermi liquid, which we may call a “Kondo liquid (KL)” to reflect its origin in the collective Kondo lattice, displays scaling behavior, in that its emergent coherent behavior can be characterized by the temperature, T*, at which collective hybridization begins.

Below T*, the specific heat and spin susceptibility of the emergent Kondo liquid display a logarithmic dependence on temperature that reflects their coherent behavior and collective origin. Its emergent behavior can be described by a two-fluid model that has itself emerged only recently as a candidate standard phenomenological model for understanding Kondo lattice materials. In it, the strength of the emergent KL is measured by an order parameter, f (T/T*), while the loss in strength of the second component, the local moments (LMs) that are collectively creating the KL, is measured by 1-f(T/T*). KL scaling behavior, in which the scale for the temperature dependence of all physical quantities is set by T*, persists down to a temperature, T0 close to those at which the KL or LM components begin to become ordered.

Phase diagram of a work in progress

Kondo Lattice Scaling Behavior

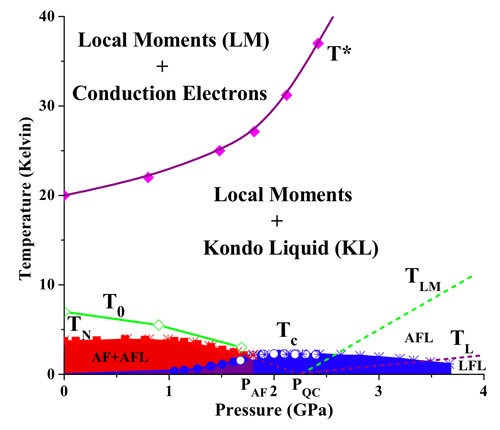

Figure 21: A candidate phase diagram for CeRhIn5 depicting the changes in its emergent behavior and ordering temperatures as a function of pressure.
Source: © David Pines.
The red, blue and purple shaded regions are those in which one finds, respectively, local moment antiferromagnetic order (AF), heavy electron superconducting order (SC), and a co-existence of the AF and SC phases. T0 is the temperature below which the heavy fermions no longer exhibit KL scaling behavior, TN is the Neel transition temperature for AF ordering, TC is the superconducting transition temperature, TLM is a suggested temperature, not yet determined experimentally, at which the local moments cease to exist as an independent degree of freedom (and the size of the electronic Fermi surface is expected to jump), TL is the temperature below which the heavy electron Fermi liquid (FL) displays Landau FL behavior (which will appear in the superconducting region if magnetic fields strong enough to destroy superconductivity are applied) while above TL, one finds the anomalous Fermi liquid (AFL) transport behavior expected for quasiparticles being scattered against quantum critical fluctuations emanating from the quantum critical point at PQC. While theory would suggest the presence of a TL line for P < PQC and a T0 line for P > PQC, it has not yet proved possible to establish their presence experimentally. (Unit: 8)

The accompanying candidate phase diagram (Figure 21) for the heavy electron material CeRhIn5(consisting of cerium, rhodium, and indium) gives a sense of the richness and complexity of the emergent phenomena encountered as a result of the magnetic couplings within and between the coexisting KL and LM components as the temperature and pressure are varied. It provides a snapshot of work in progress on these fascinating materials—work that will hopefully soon include developing a microscopic theory of emergent KL behavior.

Above T*, the local moments are found to be very weakly coupled to the conduction electrons. Below T*, as a result of an increasing collective entanglement of the local moments with the conduction electrons, a KL emerges from the latter that exhibits scaling behavior between T* and T0; as it grows, the LM component loses strength. T0is the temperature below which the approach of antiferromagnetic or superconducting order influences the collective hybridization process and ends its scaling behavior.

At TN, the residual local moments begin to order antiferromagnetically, as do some, but not all, of the KL quasiparticles. The remaining KL quasiparticles become superconducting in a so-called dx2-y2 pairing state; as this state grows, the scale of antiferromagnetic order wanes, suggesting that superconductivity and antiferromagnetic order are competing to determine the low-temperature fate of the KL quasiparticles.

When the pressure, P, is greater than PAF, superconductivity wins the competition, making long-range antiferromagnetic LM order impossible. The dotted line continuing TN toward zero for P greater than PAF indicates that LM ordering is still possible if superconductivity is suppressed by application of a large enough external magnetic field. Experimentalists have not yet determined what the Kondo liquid is doing in this regime; one possibility is that it becomes a Landau Fermi liquid.

Starting from the high pressure side, PQC denotes the point in the pressure phase diagram at which local moments reappear and a localized (AF) state of the quasiparticles first becomes possible. It is called a “quantum critical point” because in the absence of superconductivity, one would have a T = 0 quantum phase transition in the Kondo liquid from itinerant quasiparticle behavior to localized AF behavior.

Since spatial order is the enemy of superconductivity, it should not be surprising to find that in the vicinity of PQC, the superconducting transition temperature reaches a maximum—a situation we will see replicated in the cuprates and one likely at work in all the unconventional superconducting materials. One explanation is that the disappearance of local moments at PQC is accompanied by a jump in the size of the conduction electron Fermi surface; conversely, as the pressure is reduced below PQC, a smaller Fermi surface means fewer electrons are capable of becoming superconducting, and both the superconducting transition temperature and the condensation energy, the overall gain in energy from becoming superconducting, are reduced.

In the vicinity of a quantum critical point, one expects to find fluctuations that can influence the behavior of quasiparticles for a considerable range of temperatures and pressures. Such quantum critical (QC) behavior provides yet another gateway for emergent behavior in this and other heavy electron materials. It reveals itself in transport measurements. For example, in CeRhIn5 at high pressures, one gets characteristic Landau Fermi liquid behavior (a resistivity varying as T2) at very low temperatures; but as the temperature increases, one finds a new state of matter, quantum critical matter, in which the resistivity in the normal state displays anomalous behavior brought about by the scattering of KL quasiparticles against the QC fluctuations.

What else happens when the pressure is less than PQC? We do not yet know whether, once superconductivity is suppressed, those KL quasiparticles that do not order antiferromagnetically exhibit Landau Fermi liquid behavior at low temperatures. But given their behavior for P less than Pcr, that seems a promising possibility. And their anomalous transport properties above TN and Tcsuggest that as the temperature is lowered below T0, the heavy electron quasiparticles exhibit the anomalous transport behavior expected for quantum critical matter.

Superconductivity without phonons

We turn now to a promising candidate gateway for the unconventional superconducting behavior seen in this and other heavy electron materials—an enhanced magnetic interaction between quasiparticles brought about by their proximity to an antiferromagnetically ordered state. In so doing, we will continue to use BCS theory to describe the onset of superconductivity and the properties of the superconducting state. However, we will consider its generalization to superconducting states in which pairs of quasiparticles condense into states of higher relative angular momentum described by order parameters that vary in both configuration and momentum space.

Magnetic Quasiparticle Interaction

Figure 22: The magnetic quasiparticle interaction between spins s and s’ induced by their coupling to the spin fluctuations, , of the magnetic background material.
Source: © David Pines.
The spin-fluctuation induced interaction between quasiparticles operates in much the same way as their phonon-interaction, with spin replacing charge. Thus a quasiparticle with spin s can induce a spin-fluctuation of momentum q, which is in turn picked up by a second quasiparticle of spin s’. Unlike the charged case, the resulting induced interaction can be highly momentum dependent, reflecting as it does any momentum dependence of the background material spin fluctuations. (Unit: 8)

To see how the magnetic gateway operates, we turn to Figure 22 which illustrates how the magnetic interaction between two quasiparticles, whose spins are s and s’, can be modified by their coupling to the spin fluctuations characteristic of the background magnetic behavior of the material in which they are located. Quite generally, spin, s, located, say, at the origin, acts to polarize the material by inducing a spin fluctuation; this induced magnetization, in turn, couples to the second spin, s’, located a distance r away, producing an induced effective magnetic interaction which is analogous to the phonon-induced interaction responsible for superconductivity in ordinary BCS superconductors.

This induced effective magnetic interaction is highly sensitive to the magnetic properties of the background material. For an ordinary paramagnet exhibiting weakly magnetic behavior, the resulting magnetic interaction is quite weak and unremarkable. If, however, the background material is close to being antiferromagnetic, the spectrum of the spin fluctuations that provide the glue connecting the two spins becomes highly momentum dependent, exhibiting a significant peak for wave vectors that are close to those for which one finds a peak in the wave vector dependent magnetic susceptibility of the almost magnetically ordered material. As a result, the induced magnetic quasiparticle interaction will be strong and spatially varying.

Magnetic Interaction

Figure 23: Magnetic interaction potential in a lattice.
Graphical representation of the static magnetic interaction potential in real space seen by a quasiparticle moving on a square crystal lattice given that the other quasiparticle is at the origin (denoted by a cross). The spins of the interacting quasiparticles are taken to be antiparallel, such that the total spin of the Cooper pair is zero. The dashed lines show the regions where the d-wave Cooper-pair state has vanishing amplitude. This is the state that best matches the oscillations of the potential, in that a quasiparticle has minimal probability of being on lattice sites when the potential induced by the quasiparticle at the origin is repulsive. The size of the circle in each lattice site is a representation of the absolute magnitude of the potential (on a logarithmic scale). This picture is appropriate for a system on the border of antiferromagnetism in which the period of the real space oscillations of the potential is precisely commensurate with the lattice. (Unit: 8)
Source: © Reprinted by permission from Macmillan Publishers Ltd: Nature 450, 1177–1183 (18 December 2007).

Consider, for example, a magnetic material that is at a pressure near the point at which the material exhibits simple two-dimensional planar commensurate AF order (in which the nearest neighbor spins point in opposite directions). Its momentum dependent susceptibility will then have a peak at the commensurate wave vector Q =[π/a, π/a] where a is the lattice spacing, as will its spin fluctuation spectrum. The corresponding induced magnetic quasiparticle interaction in configuration space will then be repulsive at the origin, attractive at its nearest neighbor sites, repulsive at next nearest neighbor sites, etc., as shown in Figure 23.  See The Math below.

Such an interaction, with its mixture of repulsion and attraction, does not give rise to the net attraction required for superconductivity in the conventional BCS singlet s-wave pairing state with an order parameter and energy gap that do not vary in space. The interaction can, however, be remarkably effective in bringing about superconductivity in a pairing state that varies in momentum and configuration space in such a way as to take maximum advantage of the attraction while possessing nodes (zeros) that minimize the repulsion. A dx2-y2 pairing state, the singlet d-wave pairing state characterized by an order parameter and energy gap Δx2-y2 (k)= Δ[cos (kxa)-cos (kya)], does just that, since it has nodes (zeroes) where the interaction is repulsive (at the origin or along the diagonals, for example) and is maximal where the interaction is maximally attractive (e.g., at the four nearest neighbor sites) as may also be seen in Figure 23.

We call such superconductors “gapless” because of the presence of these nodes in the gap function. Because it costs very little energy to excite quasiparticles whose position on the Fermi surface puts them at or near a node, it is the nodal quasiparticle excitations which play the lead role in determining the normal fluid density. Their presence is easily detected in experiments that measure it, such as the low-temperature specific heat and the temperature dependence of the London penetration depth. Nodal quasiparticle excitations are also easily detected in NMR measurements of the uniform susceptibility and spin-lattice relaxation rate, and the latter measurements have verified that the pairing state found in the “high Tc” heavy electron family of CeMIn5materials, of which CeRhIn5 is a member, is indeed dx2-y2, the state expected from their proximity to antiferromagnetic order.

To summarize: In heavy electron materials, the coexistence of local moments and itinerant quasiparticles and their mutual interactions can lead to at least four distinct emergent states of matter: the Kondo heavy electron liquid, quantum critical matter, antiferromagnetic local moment order, and itinerant quasiparticle dx2-y2, superconductivity, while the maximum superconducting transition temperature is found close to the pressure at which one finds a QCP that reflects the onset of local moment behavior. In the next section, we will consider the extent to which comparable emergent behavior is observed in the cuprate superconductors.

7. Emergent Behavior in the Cuprate Superconductors

We can best appreciate the remarkable properties of the cuprate superconductors by considering a candidate phase diagram (Figure 24) that has emerged following almost 25 years of experimental and theoretical study described in well over 100,000 papers. In it, we see how the introduction of holes in the CuO planes through chemical substitution in materials such corresponding to La1-xSrxCuO4 or YBa2Cu3O6+x, the low-temperature phase is one of antiferromagnetic order. The gateway to this emergent behavior is the very strong electrostatic repulsion between the planar quasiparticles. This causes the planar Cu d electron spins to localize (a process called “Mott localization” in honor of its inventor, Nevill Mott rather than be itinerant, while an effective antiferromagnetic coupling between these spins causes them to order antiferromagnetically. The magnetic behavior of these localized spins is remarkably well described by a simple model of their nearly two-dimensional behavior, called the “two-dimensional Heisenberg model;” it assumes that the only interaction of importance is a nearest neighbor coupling between spins of strength J.

The impact of adding holes

Cuprate Superconductors

Figure 24: A candidate phase diagram based, in part, on magnetic measurements of normal state behavior, for the cuprate superconductors, in which are shown the changes in its emergent behavior and ordering temperatures as a function of the concentration of holes in the CuO planes. Source: © David Pines.
The red and blue shaded regions are those in which one finds, respectively, local moment antiferromagnetic order, and quasiparticle superconducting d-wave order. Tmax is the temperature at which the temperature-dependent uniform spin susceptibility reaches its maximum value, T* is the temperature at which the pseudogap phase emerges, TN is the Neel transition temperature for local moment AF ordering, TC is the quasiparticle superconducting transition temperature, TL is the temperature below which the quasiparticle Fermi liquid (FL) displays Landau FL behavior (which will appear in the superconducting region if magnetic fields strong enough to destroy superconductivity are applied) while above TL (and T*) one finds the anomalous Fermi liquid (AFL) transport behavior expected for quasiparticles being scattered against quantum critical fluctuations emanating from the quantum critical point, shown here at a doping level ~0.22, although its precise location may be at a somewhat lower doping level. To the left of the QCP, local moments and quasiparticles can co-exist over the entire region of doping (x < 0.22), while to its right, no local moments are present below a temperature that has not yet been determined. Above Tmax the local moments form a spin liquid that exhibits the mean field scaling behavior expected for a two-dimensional Heisenberg antiferromagnet at high temperatures, while below it they display the behavior expected for a two-dimensional Heisenberg antiferromagnet in the quantum critical regime, hence the notation, quantum critical spin liquid (QCSL). Below T* (and above TC) both the local moments and the quasiparticles change their behavior as the pseudogap state of matter emerges, with antinodal quasiparticles forming an insulating state with an energy gap that displays d-wave behavior, while nodal quasiparticles may display Landau Fermi liquid behavior before making the transition into the superconducting state at TC. (Unit: 8)

When one adds holes to the plane, their presence has a number of interesting consequences for the localized Cu spins. Those, in turn, can markedly influence the behavior of the holes that coexist with them. The accompanying phase diagram (Figure 24) indicates some of the effects. Among them:

  • Holes interfere with the long-range antiferromagnetic order of the localized spins, initially reducing its onset temperature, TN, and then eliminating it altogether for hole doping levels x > 0.03.
  • At higher hole doping levels, 0.03 < x < 0.22, the local spins no longer exhibit long-range order. Instead they form a spin liquid (SL) that exhibits short-range spin order and scaling behavior controlled by their doping-dependent interaction. The measured scaling behavior of the SL can be probed in measurements using nuclear magnetic resonance to probe the temperature-dependent uniform magnetic susceptibility and measure the relaxation time of 63Cu probe nuclei. These show that for temperatures above T*(x), the SL can still be described by the 2-d Heisenberg model, with a doping-dependent interaction, Jeff(x), between nearest neighbor spins whose magnitude is close to the temperature, Tmax(x), at which the SL magnetic susceptibility reaches a maximum. As the density of holes increases, both quantities decrease linearly with x.
  • x = 0.22 is a quantum critical point (QCP) in that, absent superconductivity, one would expect a quantum phase transition there from localized to itinerant behavior for the remaining Cu spins.
  • Between Tmax and T*, the holes form an anomalous fermi liquid (AFL), whose anomalous transport properties are those expected for quantum critical matter in which the quasiparticles are scattered by the QC fluctuations emanating from the QCP at x ~ 0.22. Careful analysis of the nuclear spin-lattice relaxation rate shows that in this temperature range, the SL exhibits the dynamic quantum critical behavior expected in the vicinity of 2d AF order, hence its designation as a quantum critical spin lLiquid, QCSL.
  • Below T*, a quite unexpected new state of quantum matter emerges, pseudogap matter, so called because in it some parts of the quasihole Fermi surface become localized and develop an energy gap; the SL, which is strongly coupled to the holes, ceases to follow the two-dimensional Heisenberg scaling behavior found at higher temperatures.



Pseudogaps

Figure 25: Schematic illustration of the temperature evolution of the Fermi surface in underdoped cuprates. The d-wave node below Tc (left panel) becomes a gapless arc in the pseudogap state above Tc (middle panel), which expands with increasing T to form the full Fermi surface at T* (right panel).
The ARPES results reported here show the way in which, as the temperature is lowered below T*, quasiparticle localization in the pseudogap state steals away part of the available Fermi surface, so that the density of quasiparticles available to condense in the superconducting state at Tc is substantially reduced from its optimum value found at higher doping levels, and the resultant superconductivity is “weak.” (Unit: 8)

  • For 0.05 < x < 0.17, the hole concentration that marks the intersection of the T* line with Tc, the superconducting state that emerges from the pseudogap state is “weak”; some of the available quasiparticles have chosen, at a temperature higher than Tc, to become localized by condensing into the pseudogap state, and are therefore not available for condensation into the superconducting state. Their absence from itinerant behavior, illustrated in Figure 25, is seen, for example, in an ARPES (angle-resolved photoemission spectroscopy) probe of quasiparticles at the Fermi surface. Pseudogap matter and superconductivity thus compete for the low-temperature ordered state of the hole Fermi liquid in much the same way as antiferromagnetism and superconductivity compete in heavy electron materials.
  • For x > 0.17, superconductivity wins the competition and is “strong,” in that all available quasiparticles condense into the superconducting state. At these dopings, the pseudogap state does not form unless a magnetic field strong enough to destroy superconductivity is applied; when it is, the pseudogap state continues to form until one reaches the QCP at x ~ 0.22, behavior analogous to that found for the AF state in CeRhIn5.
  • Whether the superconductivity is weak or strong, the pairing state turns out to be the dx2-y2state that, in the case of heavy electron materials, is the signature of a magnetic mechanism in which the magnetic quantum critical spin fluctuations provide the pairing glue. It is not unreasonable to conclude that the same physics is at work in the cuprates, with the nearly antiferromagnetic spin fluctuations playing a role for these unconventional superconductors that is analogous to that of phonons for conventional superconductors.
  • The pseudogap state tends to form stripes. This tendency toward “inhomogeneous spatial ordering” reflects the competition between localization and itinerant behavior. It leads to the formation of fluctuating spatial domains that have somewhat fewer holes than the average expected for their doping level that are separated by hole-rich domain walls.
  • Scanning tunneling microscope experiments (STM) (Figure 26) on the BSCCO members of the cuprate family at low temperatures show that, for doping levels less than x ~ 0.22, even the samples least contaminated by impurities exhibit a substantial degree of spatial inhomogeneity, reflected in a distribution of superconducting and pseudogap matter energy gaps.
  • Just as in the case of heavy electrons, the maximum Tc is not far from the doping level at which the spatial order manifested in pseudogap behavior enters.

Ingredients of a theory

Scanning Tunneling Microscope

Figure 26: Left: A scanning tunneling microscope (STM) is a powerful instrument for imaging surfaces at the atomic level. Right: Inhomogeneous energy gaps measured in BSCCO; (a)-(d) correspond to doping levels that range from near optimal values of x = 0.19 seen in sample (a), for which Tc is 89 K, through levels of 0.15 (b), 0.13 (c) to the very underdoped material(d), for which x = 0.11 and Tc = 65 K; the color scales are identical. Source: © Left: Wikimedia Commons, CC Share Alike 2.5 Generic License. Author: Royce Hunt, 5 March 2007. Right: K. McElroy, D.-H. Lee, J. E. Hoffman, K. M. Lang, J. Lee, E.W. Hudson, H. Eisaki, S. Uchida, and J. C. Davis.
Not only are the energy gaps measured in this STM measurement remarkably inhomogenous, but their magnitude is seen to change markedly as the doping level and Tc are decreased. Results such as these have convinced many physicists that the average energy gap seen most clearly here, whose magnitude increases as the doping level decreases, is associated with the localization of quasiparticles in the pseudogap state, since it does not track the superconducting transition temperature as would be expected for pair condensation into a BCS superconducting pairing state. (Unit: 8)

We do not yet possess a full microscopic theory that explains these amazing emergent behaviors, but we see that the basic ingredients for developing such a theory are remarkably similar to those encountered in heavy electron materials. In both cuprates and heavy electron materials, local moments coexist with quasiparticles over a considerable portion of their generalized phase diagrams. Their mutual interaction and proximity to antiferromagnetism and a “delocalizing” quantum critical point lead to the emergence of quantum critical matter and d x2-y2 superconductivity, with the maximum Tc for the latter located not far from the QCP at which quasiparticle localization first becomes possible.

The principal differences are twofold: First, in the cuprates, the physical origin of the local moments is intrinsic, residing in the phenomenon of Mott localization brought about by strong electrostatic repulsion); second, in place of the AF order seen in heavy electron materials, one finds a novel ordered state, the pseudogap, emerging from the coupling of quasiparticles to one another and to the spin liquid formed by the Cu spins. It is the task of theory to explain this last result.

We can qualitatively understand the much higher values of Tc found in the cuprates as resulting from a mix of their much higher intrinsic magnetic energy scales as measured by the nearest neighbor LM interaction—J ~1000 K compared to the 50 K typically found in heavy electron materials—and their increased two-dimensionality.

Theories in competition

Our present understanding of emergent behaviors in the cuprates would not have been possible without the continued improvement in sample preparation that has led to materials of remarkable purity; the substantive advances in the use of probes such as nuclear magnetic resonance and inelastic neutron scattering, to study static and dynamic magnetic behavior in these materials; and the development of probes such as ARPES, STM, and the de Haas von Alphen effect that enable one to track their quasiparticle behavior in unprecedented detail. The brief summary presented here has scarcely done justice to the much more detailed information that has emerged from these and other experiments, while it is even more difficult to present at a level appropriate for this unit an overview of the continued efforts by theorists to develop a microscopic explanation of this remarkable range of observed emergent behaviors.

The theoretical effort devoted to understanding the cuprate superconductors is some orders of magnitude greater than that which went into the search for a microscopic theory of conventional superconductors. Yet, as of this writing, it has not been crowned by comparable success. Part of the reason is that the rich variety of emergent behaviors found in these materials by a variety of different experimental probes are highly sample-dependent; it has not yet proved possible to study a sample of known concentration and purity using all the different probes of its behavior. This has made it difficult to reconcile the results of different probes and arrive at candidate phenomenological pictures such as that presented above, much less to arrive at a fundamental theory.

Another aspect is the existence of a large number of competing theories, each of which can claim success in explaining some aspect of the phase diagram shown in Figure 24. The proponents of each have been reluctant to abandon their approach, much less accept the possibility that another approach has been successful. Since none of these approaches can presently explain the complete candidate phase diagram discussed above, developing a microscopic theory that can achieve this goal continues to be a major challenge in condensed matter theory.

Still another challenge is finding new families of superconductors. Theory has not notably guided that quest in the past. However, the striking similarities in the families of novel unconventional superconductors thus far discovered suggest one strategy to pursue in searching for new families of unconventional (and possibly higher Tc) superconductors: Follow the antiferromagnetism, search for layered materials with high values of J, and pay attention to the role that magnetic order can play in maximizing Tc. In so doing, we may argue that we have learned enough to speculate that, just as there was a “phonon” ceiling of some 30 K for Tc in conventional superconductors, there may be a “magnetic” ceiling for Tc in unconventional superconductors. Both may be regarded as reflecting a tendency for strong quasiparticle interactions to produce localization rather than superconductivity. The question, then, is whether we have reached this ceiling with a Tc of about 160 K or whether new materials will yield higher transition temperatures using magnetic glues, and whether there are nonmagnetic electronic routes to achieving still higher values of Tc.

8. Superfluidity on a Cosmic Scale


THE QUICK AND THE DENSE: PULSARS AND NEUTRON STARS

When a star with between four and eight times the mass of our Sun approaches the end of its life, it undergoes gravitational collapse, seen as a supernova, with the end-point being a comparatively tiny object—a star in which the inward pressure of gravity is balanced by the outward quantum pressure of the mostly neutrons it contains. These neutron-rich celestial objects arise from when the relentless gravitational pressure within its parent object exceeds the thermal pressure produced by its nuclear. The resulting stellar collapse drives a conversion in the supernova core of protons and electrons into neutrons, essentially compressing the atomic matter into nuclear material. This eliminates the empty space in atoms, and produces an object of extraordinarily high density. The typical neutron star packs a mass about 1.4 times that of the Sun into a diameter of order 10 kilometers so that its density is of the order of that found in atomic nuclei, equivalent to packing all the people on Earth into a single raindrop, so that a teaspoonful of the matter in a neutron star would weigh one billion tons on Earth.

Although the possibility of neutron stars was first suggested by Walter Baade and Fritz Zwicky in 1934, it was not until 1967 that astronomers took the proposal seriously. That year, a Cambridge University graduate student, Jocelyn Bell, convinced her thesis supervisor, Antony Hewish, that her observation of a radio source pulsing on and off with extraordinary regularity was not due to a system malfunction. The Cambridge radio astronomers first called the object LGM-1 (for little green men 1) because its precision seemed to indicate communication from intelligent life. But within a few months, theorists, led by Cornell astrophysicist Thomas Gold, persuaded the astronomical community that a pulsar had to be a rotating neutron star containing a giant residual magnetic field whose magnitude may be estimated by assuming that flux is conserved in the implosion which formed it, so that a progenitor core magnetic field of ~1 gauss becomes amplified into a field of ~1012 gauss, which could emit electron and electromagnetic beams of radiation as it spins.

So, while pulsars have not revealed anything about life elsewhere in the universe in the decades since their discovery, they have provided astrophysicists with a cosmic laboratory that can be used to study the behavior of matter at extraordinarily high densities, densities that are indeed the highest observable in our universe.

We conclude this unit with an introduction to some truly high Tc superfluids—the neutron superfluids found in the crust and core of a neutron star, for which Tc can be as large as 600,000 K. As we will see, the remarkable behavior of these superfluids not only enables us to study their emergent behavior by observing pulsars located many light-years away, but also establishes that these represent the most abundant superfluids in our universe.

Figure 27: The first director of the Los Alamos National Laboratory, Robert Oppenheimer (ca. 1944) was a brilliant theoretical physicist and inspired teacher who became famous for his remarkably effective leadership of the Manhattan Project.
Source: © Los Alamos National Laboratory
Robert Oppenheimer, who was known by his Dutch nickname, Opje, to his students and friends, was a brilliant theoretical physicist and inspired teacher who became famous for his 1943-45 remarkably effective leadership of the Manhattan Project that developed the atomic bomb, and for the witch-hunt that led to a denial of his security clearance some nine years later. In the years before WW2, he established the major school of American theoretical physics, as he taught his famous courses on quantum mechanics (the inspiration for the very different texts by David Bohm and Leonard Schiff) and electrodynamics, divided his time between Berkeley and Caltech, and counted among his students and postdocs, Julian Schwinger, Willis Lamb, Robert Serber, Melba Phillips, Leonard Schiff, Sidney Dancoff, Arnold Nordseick, David Bohm, Hartland Snyder, and George Volkoff, many of whom were so taken with him that they attempted to imitate his western attire and pork-pie hat. In the post WW2 years, his students at Berkeley, of whom I was one, would marvel that despite being clearly the “brightest” theorist of his generation he had not carried out any research that was worthy of a Nobel Prize. We were wrong; his seminal work on the existence of neutron stars and what became known as black holes would have won the prize for him, as the existence of these remarkable compact astronomical objects was established by observations in the late 60’s and 70’s, had he lived another decade. But his constant smoking (he would lecture with a cigarette hanging from his mouth, and light another as soon as that one was finished, never confusing the cigarette with the chalk in his hand) gave rise to the cancer from which he died, aged 63, in 1968. (Unit: 8)




Russian physicist Arkady Migdal suggested in the 1960s that cosmic hadron superfluids might exist in neutron stars. If the neutron stars studied by Robert Oppenheimer in 1939 existed, he reasoned, then in light of the fact that nuclei in the outer shells of terrestrial nuclei exhibited superfluid behavior, the neutrons these stars contained would surely be superfluid. Not long afterwards, Vitaly Ginzburg and David Kirshnitz argued that neutron stars, if indeed they existed, would surely rotate, in which case their rotation should be described in terms of the quantized vortex lines seen in liquid He.

Figure 28: An image taken by the Chandra X-ray telescope of the Vela supernova remnant that shows dramatic bow-like structures produced by the interaction of radiation and electron beams coming from the rapidly rotating neutron star in its center with its immediate environment.
Source: © NASA, PSU, G. Pavlov et al., courtesy of Chandra X-ray Observatory.

The issue of such cosmic superfluidity remained a gleam in the theorist’s eye until 1967. In that year, Cambridge graduate student Jocelyn Bell, who was studying atmospheric-produced scintillations of radio signals in Antony Hewish’s radio astronomy laboratory, discovered pulsars. Astronomers soon identified these objects as rotating neutron stars which slowed down in remarkably regular fashion as they transferred their rotational energy into electromagnetic waves and accelerated electron beams.

Two years later, V. Radhakrishnan and Richard Manchester, using a radiotelescope in Australia, and Paul Reichley and George Downs, based at Caltech’s Jet Propulsion Laboratory, independently observed that a comparatively young and fast pulsar, the Vela pulsar with an 89 ms period of rotation, “glitched.” First, instead of continuing a remarkably regular spin-down produced by the transformation of its rotational energy into the beams of radio emission observed on Earth, it sped up by a few parts in a million.

Then, over some days to weeks, the sudden spin-up decayed. That a sudden spin-up of a tiny astronomical object with a radius of about 10 kilometers but a mass of the order of our Sun should occur at all is remarkable. Indeed, astronomers might have treated the glitch report as a malfunction of an observing radio telescope had not observers working independently in Australia and California both seen it. But perhaps more remarkable is the fact that astronomers could actually observe a glitch, since a response time for ordinary neutron matter would be about 10-4 seconds, the time it takes a sound signal to cross the star. So, under normal circumstances, a glitch and its response would be gone in less time than the twinkling of an eye.

Vela Pulsar

Figure 29: Radiotelescope observations of postglitch behavior in the Vela pulsar.
Source: © Sarah Buchner, Hartebeesthoek Radio Astronomy Observatory, South Africa.
The initial glitch observation for the Vela pulsar in March, 1969, was followed by observations of another three glitches within the decade. Nine subsequent Vela pulsar glitches that occurred between 1985 and 2006 were observed at the Hartebesthoek Radio Astronomy Observatory, South Africa. An analysis by Sarah Buchner showed post-glitch behavior can be understood using three distinct relaxation times, 0.49 d, 5.4 d, and 49 d, consistent with the postglitch behavior expected for the response of superfluid vortices in distinct pinning regimes in the neutron star that had been previously identified by Ali Alpar of Sabanci University and his colleagues. (Unit: 8)

The explanation was soon forthcoming: The slow decay time provided unambiguous evidence for the presence of superfluid neutrons in the pulsar. The reason was that these can change their angular momentum only by the postglitch motion of the vortex lines they carry and that process could easily be imagined to take days to months.

Why glitches occur

Crab Nebula

Figure 30: This recent image from the Chandra X-ray telescope shows the Crab Nebula, the remnant of a supernova explosion seen on Earth in 1054 AD that accompanied the formation of a rapidly rotating neutron star at its center.
Source: © NASA, CXC, and SAO.
When compared to the Vela pulsar, the glitches seen in the younger and more rapidly rotating (P=33msec) Crab pulsar are some two to three orders of magnitude smaller and may be produced by starquakes. As the pulsar ages, its period will decrease, while pinning regions are expected to develop that will lead to glitch magnitudes, frequency, and post-glitch behavior similar to that seen in the Vela pulsar. (Unit: 8)

Theorists initially thought that the origin of the glitch was extrinsic to the neutron superfluid. They envisioned a starquake in which part of the stellar crust crumbled suddenly in response to the forces produced by changes in the star’s shape induced by pulsar spindown. But the observation of a second glitch in the Vela pulsar quickly ruled out that explanation for Vela pulsar glitches, since an elementary calculation showed that the expected time between such massive starquakes would be some thousands of years. Typical intervals between Vela pulsar glitches are some two years. It should be noted that for the much smaller glitches (a few parts in 100 million) seen in very young pulsars, such as that located in the Crab Nebula, whose age is less than 1,000 years, starquakes continue to provide a plausible explanation of their origin.

In 1975, Philip Anderson and Naoki Itoh came up with what astrophysicists now recognize as the correct explanation of the frequent pulsar glitches seen in the Vela and other older pulsars. Glitches, they argued, are an intrinsic property of the crustal neutron superfluid and come about because the vortex lines that carry the angular momentum of the crustal superfluid are pinned to the crustal nuclei with which they coexist. As a result, the superfluid’s angular velocity, which can change only through the motion of its vortices, will lag that of the crust. The lag will persist until a sufficiently large number of vortices are pinned, at which point these unpin catastrophically, bringing about a sudden jump in the angular momentum of the star—a glitch—while their subsequent motion determines the postglitch behavior produced by superfluid response to the glitch.



Pinning

Figure 31: An illustration of two possible regimes of pinning for superfluid vortices in the crust of a neutron star. Left: the weak pinning expected when the size of the normal core, of a vortex in the crustal neutron superfluid vortex is comparable to that of a crustal nucleus. Right the superweak pinning expected for a much larger vortex normal core.
Source: © Reproduced by permission of the AAS. Courtesy of M.A. Alpar, P.W. Anderson, D. Pines, and J. Shaham, 1983.
An illustration of two possible regimes of pinning for superfluid vortices in the crust of a neutron star. Left: the weak pinning expected when the size of the normal core, of a vortex in the crustal neutron superfluid vortex is comparable to that of a crustal nucleus. Right: the superweak pinning expected for a much larger vortex normal core. Theorists expect a substantial variation in pinning energies in crustal regions, since the superfluid coherence length reflects the rapid variation of the crustal superfluid energy gap. Weak pinning occurs when vortices pin to single nuclei in their path; superweak pinning when the core of a vortex is much larger than the size of a nucleus. The response of these different regions may be seen in the quite different time scales required for vortices to reestablish their positions following a glitch, so it is plausible that the 5.4 d, and 49 d recovery times seen in the Vela pulsar reflect the presence of significant weak and superweak pinning regions there. (Unit: 8)

Unexpectedly, perhaps, careful study of the range of pinning possibilities and the nonlinear response of the superfluid to unpinning events has made it possible to identify the distinct pinning regions in the stellar crust shown in Figure 30 by their different response to a glitch and to explain the characteristic response times identified in the postglitch behavior of the Vela and other pulsars. Still more surprising, a careful analysis of the glitch magnitude and the superfluid postglitch response of a given pulsar now makes it possible to predict with some accuracy (roughly tens of days, say, for glitches separated by intervals of order years) the time to its next glitch.

A summary of our present theoretical understanding of the components of a neutron star is given in Figure 32, while some recent observations of the two best-known neutron stars, those found in the Crab and Vela constellations, are illustrated in Figures 28 and 30.



Superfluids in the stars

Based on the roughly 25 glitching pulsars observed so far, we can easily establish that the amount of cosmic neutron superfluid observed thus far is several solar masses, or some 1034 grams. That far exceeds the quantity of terrestrial superfluid ever produced or observed. Further, the amount of cosmic neutron superfluid contained in neutron stars that have yet to be seen to glitch is likely an order of magnitude larger.



Neutron Star Cross-Section

Figure 32: A cross section of a neutron star shows the rich variety of emergent quantum matter expected in its crust and core.
Source: © Dany Page.
Current observations of neutron star masses suggest the existence of stars with a mass of order 2 solar masses. Such stars require a stiff equation of state for the neutron matter that makes up most of the star to be able to balance the attraction of gravity—and rules out the presence of exotic forms of matter (pion-kaon condensates, quark matter or core solids) in the core of any neutron star because at any mass its central density is less than the transition densities for these exotic phases. (Unit: 8)

Interestingly, glitch observations also provide us with important information on the hadron equation of state, since one that is too soft will not yield a crust sufficiently thick (~ 1 km) to support the region of pinned crustal superfluid we need to explain glitches. On combining this with information from direct measurements of pulsar masses in binary systems, theorists now conclude that the hadron equation of state that describes the behavior of matter in the inner core of the star depicted in Figure 32, is sufficiently stiff that one will not find quark or other proposed exotic forms of matter there.

Developing an emergent perspective

While the author was receiving radiation treatment for prostate cancer at UCSF in San Francisco in the spring of 1999, with time on his hands following his early morning irradiations, he arranged to visit Stanford two days a week to discuss with his colleague Bob Laughlin various issues relating to the then newly formed Institute for Complex Adaptive Matter.

What emerged from those discussions was a paper, “The Theory of Everything.” In it, we pointed out the obvious—that there can be no “theory of everything” in an emergent universe in which it is impossible to calculate with precision the result of bringing more than a dozen or so particles together, to say nothing of the difficulties in dealing with the living matter (discussed in Unit 9). We then called attention to the not so obvious; that despite this, one knows many examples of the existence of higher organizing principles in nature—gateways to emergence that lead to protected behavior in the form of exact descriptions of phenomena that are insensitive to microscopic details.

In this unit, we have considered a number of well-established quantum protectorates: the low-energy excitation spectrum of a conventional crystalline insulator, which consists of transverse and longitudinal sound, regardless of microscopic details; the low energy screening of electron interactions in quantum plasmas; the low-energy behavior of a Landau Fermi liquid; and the low-energy excitation spectrum of a conventional superconductor which is characterized by a handful of parameters that may be determined experimentally but cannot be computed from first principles. We have also considered a newly discovered candidate protectorate, the emergence of the Kondo liquid in heavy electron materials.

In “The Theory of Everything,” we emphasized the importance of developing an emergent perspective on science, a perspective espoused years earlier by P. W. Anderson in his seminal article, “More is Different.” The importance of acquiring and applying that emergent perspective—the realization that we have to study the system as a whole and search for the organizing principles that must be at work to bring about the observed emergent behavior—is arguably the most important takeaway message of this unit.

An emergent perspective is also needed as we confront emerging major societal challenges—human-induced climate change, terrorism, our current global economic meltdown. These are all caused by humans; and in searching for an appropriate emergent response, we begin by seeking to identify their origins in societal behavior. But now there is a difference. Because these emerging challenges have no unique cause, it follows that there is no unique or even “best” solution. So we must try many different partial solutions, invent many new institutions, and, above all, experiment, experiment, experiment, as we address the various candidate causes, hoping (and expecting) that in the process some of these experiments will work. If all goes well, because everything is pretty much connected to everything else, a set of related solutions that begin to produce the desired result will emerge over time.

The selection of the examples of emergent behavior in quantum matter to be discussed in this unit has been a quite personal one. There are so many interesting examples of emergent behavior in quantum matter that the unit could easily have been 10 times its present length; in choosing which to present, the author decided to focus on examples drawn from his personal experience. He hopes the reader/viewer will be inspired to explore a number of other important examples on her/his own. Among those highly recommended are the discovery and explanation of quantum Hall states, metal-insulator transitions, dynamical mean field theory, quantum critical behavior, the recently discovered topological insulators, and the emerging fields of spintronics, nanoscience and nanotechnology, and quantum information.

9. The Math

Density Fluctuations and the RPA

The natural coordinates for describing emergent behavior in a quantum plasma or a metal are not the single particle coordinates, ri, but rather the fluctuations in the system density around its average value, ρ,

ρ= ∫ d3 r ρ(r) exp [-iq.r] = Σ∫d3 r δ(r-ri) exp [- iq.r] = Σexp [-iq.ri]

In these coordinates, the electrostatic interaction between electrons is seen to describe an interaction between density fluctuations, as it takes the simple form,



Σi j e2/[ri-rj]=Σ[4πe2 /k2] ρ*kρk

where i is not = j and k is not = 0. Assuming the usual form for the kinetic energy of the electrons, Σl p2/2m, it is easy to show that in the long wavelength limit, the equation of motion for the density fluctuation takes the form,

in either a classical or quantum calculation, if in determining that motion one keeps only the terms in the interaction that involve that same momentum q, i.e., neglects terms that involve products of density fluctuations

ρk-q = Σexp [-i(q-k).ri]

where q is not = k. In so doing, one is making the argument that such terms will be small because of the randomly varying phases of the terms in the exponential—hence the term, random phase approximation, or RPA.






Superfluid 4Helium

Superfluid flow can be irrotational, involving density fluctuation, or rotational. When there are no density fluctuations, London, Onsager, and Feynman showed that the condensate motion responsible for superfluid flow is described by a wave function.



Ψ(r1…rn)=exp[iΣ S(ri)]Ψ0 (r1…rn)

where the ri denote the positions of the particles, Ψ0 (r1…rn) is the ground state wavefunction, and S(ri) denotes its position-dependent phase. The superfluid velocity is given by vs=[h/2πm]gradS(r)] and is irrotational, since curl vs=0. As Feynman and Onsager first showed, as a result, the superfluid velocity, vs, possesses a fundamental property, characteristic of all superfluid systems; its circulation, C, along any closed curve is quantized, and equal to an integral multiple of h/m. To see this, we write:



c = ∫ vs = [h/2πm]∫ gradS.dl

where the integral is around any closed curve, and not that the condensate wavefunction must be single-valued, which means that S can change only by a multiple of 2π when one goes around a closed circuit—hence C must be an integral multiple of h/m.

It follows that if a vessel containing the superfluid is set in rotation, vortex lines, around which the circulation is quantized, will form in the fluid to enable it to follow the flow. Figure 12 illustrates the geometry of a single straight vortex line for the case of a fluid rotating about, say, the z axis. The superfluid velocity at some point M is tangential and depends only on the distance r between M and the axis of the vortex, with



v= n[h/2πm]/r

where n is an integer giving the number of quanta of circulation in the vortex line. For a rotating superfluid, then, its superfluid velocity can only change through the motion of its quantized vortex lines.




Magnetic Gateway

Consider a spin, s [the polarizer], located at the origin. It induces a magnetization, m(r,t)=–gmm(r,t) , where χm(r,t) is the non-local magnetic susceptibility. The action of this magnetization on a second spin s’, the analyzer, brings about an induced magnetic interaction between the quasiparticles vind(r,t) –g2ms•s’χm(r,t)  whose Fourier transform in wave vector and frequency space, vind(q,ω)=–g2ms•s’χm(q,ω). If now the system is not far from antiferromagnetic order, the wave vector-dependent dynamic susceptibility in the vicinity of the ordering wave vector, Q, can become very large, as can the resulting quasiparticle attraction.

10. Further Reading

  • M.Ali Alpar and Altan Baykal, “Pulsar Braking Indices, Glitches and Energy Dissipation in Neutron Stars,” M.N.R.A.S. 372,489 (2006).
  • M.A.Alpar, H.F.Chau, K.S.Cheng and D.Pines, “Postglitch Relaxation of the Vela Pulsar after its First Eight Glitches: A Re-evaluation with the Vortex Creep Model” Ap. J. 409,345 (1993).
  • P.W. Anderson, “More is Different,” Science 177, 393–396, 1972.
  • P.W. Anderson, “Thinking Big,” Nature 437, 625-628, 2005.
  • Piers Coleman, “Quantum Criticality and Novel Phases: A panel discussion,” Physica Status Solidi 247, 506-512, 2010.
  • R.B. Laughlin and D. Pines, “The Theory of Everything,” PNAS 97:28-31, 2000.
  • P. Monthoux, D. Pines, and G.G. Lonzarich, “Superconductivity without phonons.” Nature 450, 1177-1183, 2007.
  • Philippe Nozieres and David Pines. “The Theory of Quantum Liquids,” Vol 1. Normal Fermi Liquids and Vol. 2. The Superfluid Bose Liquid, Perseus Books, 1999.
  • David Pines. Elementary Excitations in Solids, WA Benjamin, 1962.

Series Directory

Physics for the 21st Century

Credits

Produced by the Harvard-Smithsonian Center for Astrophysics Science Media Group in association with the Harvard University Department of Physics. 2010.
  • ISBN: 1-57680-891-2
